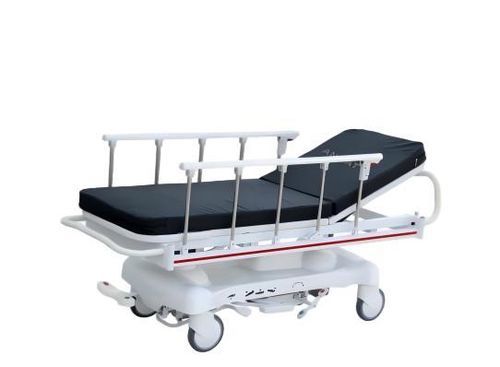

Transport stretcher FY-101

emergencyexaminationfor ambulances

Product overview
Hydraulic patient transfer stretcher FY-101 is designed for safe in-hospital transport, examination and emergency transfer. Its hydraulic lifting system and multi-angle adjustments enable precise patient positioning while stainless steel side rails and a medical-grade waterproof mattress support hygiene and durability. Silent, lockable castors and smooth hydraulic control facilitate manoeuvring in wards, operating rooms and imaging units.

Key features

• Hydraulic lifting control for smooth height adjustment
• Height adjustment range: 400–700 mm for ergonomic transfers
• Backrest angle: 75°±10°; leg section: 35°±5°
• Trendelenburg / reverse Trendelenburg tilt: forward/reverse 12°
• Stainless steel side rails for patient safety and easy cleaning
• Silent, lockable casters for stable movement and positioning
• Integrated medical waterproof mattress

Technical specifications

• Overall dimension: 1980×800×610/930 mm
• Backrest adjustment angle: 75°±10°
• Leg section adjustment angle: 35°±5°
• Height adjustment range: 400–700 mm
• Trendelenburg / reverse Trendelenburg tilt: forward / backward tilt 12°
• Side rail material: stainless steel safety guardrails
• Lifting mode: hydraulic lifting control
• Accessory: medical waterproof mattress

Applications

• Patient transfer inside hospital wards and between departments
• Use in emergency departments and ambulance handover areas
• Positioning for examinations and diagnostic procedures
• Use in operating theatres for patient preparation

Safety and maintenance
Designed for clinical workflows, the FY-101 provides stable hydraulic control, secure side rails and locking castors to reduce the risk during transfers. Stainless steel surfaces and removable mattress cover simplify cleaning and disinfection.

Accessories

• Medical waterproof mattress (supplied)
