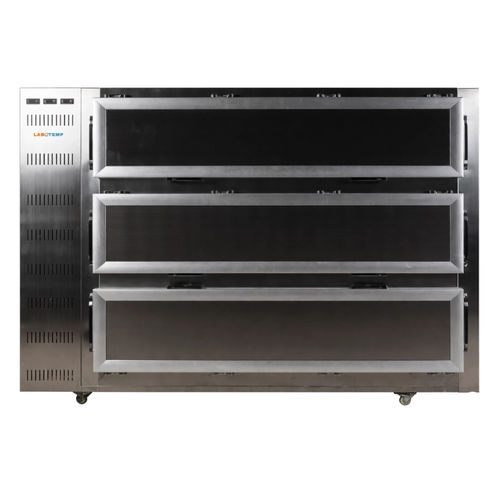

Body tray refrigerated mortuary cabinet MOR-02

3-bodyfront-loadingon casters

Product Overview
Labotemp Mortuary Refrigerator MOR-02 is a three-body mortuary refrigerator engineered for hygienic storage of human remains in hospitals, funeral homes and forensic facilities. The unit features medical-grade SS304 inner and outer surfaces, independent cooling per chamber and removable stainless-steel trays with 200 kg load capacity.

Key Benefits

• SS304 inner and outer construction for corrosion resistance and easy sanitation.
• Independent cooling with three compressors for separate temperature control of each chamber.
• Integrated alarms for high/low temperature, power failure and sensor faults.
• Lockable doors and removable sliding trays for secure handling and safe operations.

Features

• Precise digital temperature control with 0.1°C accuracy and LED display.
• Anti-corrosion 304 stainless steel body and removable trays.
• All-in-one design with side-mounted compressor for simplified installation.
• Thick foamed urethane insulation (standard 100 mm) for rapid and stable cooling.
• Adjustable temperature range (page indicates -15°C to +5°C; standard operating range 0 to -10°C).
• Three stainless-steel trays (1940 × 580 mm) with 200 kg load capacity and smooth sliding rails.
• Silent nylon rollers with anti-drop tray design and 5-inch universal wheels for mobility.
• Individual safety door locks with spare keys and side-open doors with low cold-loss sealing.
• Seven-type alarm protection system for comprehensive safety monitoring.

Applications

• Cold storage and preservation of human bodies in hospitals, mortuaries, funeral homes and forensic facilities.

Technical specifications

• Temperature Range: Standard: 0 to -10℃
• Foamed urethane thickness (mm): 100
• Thickness of stainless steel: Outer: 1.0 mm; Body Tray: 1.0 mm; Inner: 0.6 mm
• Refrigerant: R404A
• Temperature Accuracy: 0.1℃
• Compressor Place: Side of the freezer
• Working Temperature: 10–38℃
• Compressor: Germany Secop / Chinese compressor (optional)
• Compressor Number: 3 independent control of each chamber
• Number of Body Tray: 3
• Door count: 3
• Body Tray load capacity: 200 kg
• Body Tray size (mm): 1940 × 580
• External Size (mm): 2500 × 700 × 2030
• Inner Room Size (mm): 1950 × 630 × 440
• Chamber Height (mm): 440
• Rate of work: 654W / 1.2A
• Voltage: 220V / 50Hz
• Material: Stainless steel 304
• Packing Size (mm): 2700 × 900 × 2170
• Package: Plywood
• Net Weight: 330 kg
• Gross Weight: 360 kg
