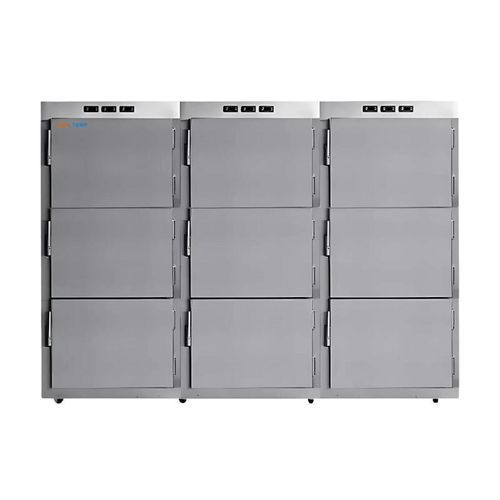

Body tray refrigerated mortuary cabinet MOR-09

9-bodyfront-loadingon casters

Product description
Labotemp Mortuary Refrigerator is designed for safe, hygienic dead body storage in hospitals, mortuaries, and forensic departments. Built with medical-grade SS304 stainless steel, this body mortuary fridge offers superior corrosion resistance, easy cleaning, and a long service life. It maintains a stable temperature of 5 to -15°C with ±0.1°C accuracy, ideal for facilities requiring controlled preservation where freezing is not needed.

Each chamber is equipped with independent Secop compressors ensuring uniform cooling and system redundancy. The MOR-09 serves as a reliable alternative to a mortuary freezer box, offering dependable performance and compliance with global specifications.

Key benefits

• Medical-Grade SS304 construction for hygienic operation and durability
• Precise temperature control: adjustable 5 to –15°C range with 0.1°C accuracy
• Independent cooling with high-quality compressors for stable performance and redundancy
• Advanced safety: multi-fault alarms, door locks, and backup protection

Features

• 304 Stainless Body
• All-in-one compact design
• 8 cm foamed urethane insulation
• LED digital temperature control
• Independent compressor system
• 200 kg stainless steel trays with silent rollers
• Safety door with lock
• 7-type alarm protection
• Removable trays
• 5-inch universal wheels

Applications

• Reliable and temperature-controlled storage of human bodies in hospitals, mortuaries, funeral homes, and forensic facilities

Specifications (table)
Temperature Range : 5 to -15°C (customizable -20)
Foamed Urethane Thickness (mm) : 100
Refrigerant : R290a
Temperature Accuracy : 0.1°C
Compressor Place : Back of the freezer
Working Temperature : 10–38°C
Compressor : Germany Secop / Chinese compressor (optional)
Compressor Number : 9 independent control of each chamber
Number of Body Tray : 9
Door count : 9
Body Tray Load Capacity : 200 kg
Body Tray Size (mm) : 2135*600mm
External Size (mm) : 2280×2360×1785
Inner Room Size (mm) : 1950×630×440
Chamber Height (mm) : 440
Rate of Work : 1962W/1.2A
Voltage : 220V/50Hz
Material : Stainless steel 304
Packing Size : 2440 × 2650 × 2115 mm
Package : Plywood
Net Weight : 960 kg
Gross Weight : 1125 kg

Technical specifications

• Model: MOR-09
• Temperature range: 5 to -15°C (customizable to -20°C)
• Temperature accuracy: 0.1°C
• Construction material: Stainless steel 304 (medical-grade)
• Insulation: 100 mm foamed urethane
• Refrigerant: R290a
• Compressors: Germany Secop (standard) or Chinese (optional); 9 independent compressors (one per chamber)
• Number of body trays / doors: 9
• Body tray load capacity: 200 kg; tray size 2135 × 600 mm
• External dimensions (W×D×H): 2280 × 2360 × 1785 mm
• Inner room size (W×D×H): 1950 × 630 × 440 mm; chamber height 440 mm
• Working ambient temperature: 10–38°C
• Electrical: 220V/50Hz; power consumption / rate of work: 1962W/1.2A
• Packing & shipping: Packing size 2440 × 2650 × 2115 mm; package: plywood; net weight 960 kg; gross weight 1125 kg
