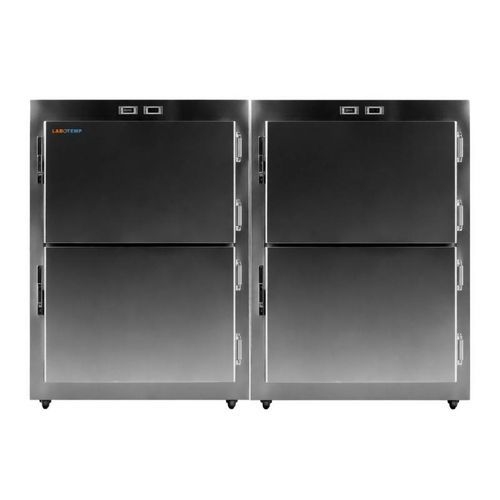

4-body refrigerated mortuary cabinet MOR-07

front-loadingon casterswith door

Overview
Labotemp MOR-07 is a mortuary refrigerator designed for controlled, hygienic storage of human bodies in hospitals, morgues, funeral homes and forensic units. Constructed in medical-grade SS304 stainless steel for corrosion resistance and easy cleaning. Standard storage range is 0 to -10°C; temperature can be customized to lower setpoints per project requirements. The unit features individually controlled chambers and removable body trays for professional clinical use.

Key benefits

• Medical-grade SS304 construction for hygienic, corrosion-resistant surfaces
• Independent cooling per chamber with multiple compressors for redundancy
• Integrated safety: multi-fault alarms, lockable doors and backup protection
• Durable removable trays with smooth sliding and 200 kg load capacity each

Features

• 5-inch universal wheels for easy relocation
• 304 stainless steel anti-corrosion body and trays
• Compact all-in-one design
• 100 mm foamed urethane insulation
• LED digital temperature controller with 0.1°C accuracy
• Independent compressor system (Germany Secop or optional Chinese compressor)
• Silent nylon rollers for smooth tray movement
• Safety doors with locks
• 7-type alarm protection (multi-fault)
• Four independently controlled chambers and four doors

Applications

• Temperature-controlled storage of human bodies for hospitals, mortuaries, funeral homes and forensic laboratories

Specifications
Temperature range: Standard 0 to -10°C (customizable to lower setpoints)
Foamed urethane thickness (mm): 100
Stainless steel thickness: Outer: 1.0 mm, Tray: 1.0 mm, Inner: 0.6 mm
Refrigerant: R404A
Temperature accuracy: 0.1°C
Compressor location: Rear of unit
Working ambient temperature: 10–38°C
Compressor: Germany Secop / Chinese compressor (optional)
Number of compressors: 4 (independent control per chamber)
Number of body trays: 4 (removable)
Number of doors: 4
Body tray load capacity: 200 kg each
Body tray size (mm): 1940×580
External size (mm): 2280×1640×1275
Inner room size (mm): 1950×630×440
Chamber height (mm): 440
Power / current: 872W / 1.2A
Voltage: 220V / 50Hz
Material: Stainless steel 304 (medical-grade SS304)
Packing size (mm): 2400×1750×1375
Packing: Plywood
Net weight: 430 kg
Gross weight: 460 kg

Technical specifications

• Model: MOR-07
• Brand: Labotemp
• Material: Stainless steel 304 (medical-grade SS304)
• Temperature range (standard): 0 to -10°C
• Operating ambient temperature: 10–38°C
• Temperature control accuracy: 0.1°C
• Refrigerant: R404A
• Compressor options: Germany Secop or Chinese (optional); 4 independent compressors
• Number of trays: 4 (removable)
• Tray load capacity: 200 kg each
• Tray dimensions: 1940×580 mm
• External dimensions: 2280×1640×1275 mm
• Inner dimensions: 1950×630×440 mm; Chamber height: 440 mm
• Insulation: 100 mm foamed urethane
• Power consumption: 872W / 1.2A
• Voltage: 220V / 50Hz
• Net weight: 430 kg; Gross weight: 460 kg
• Packing: Plywood; Packing dimensions: 2400×1750×1375 mm
