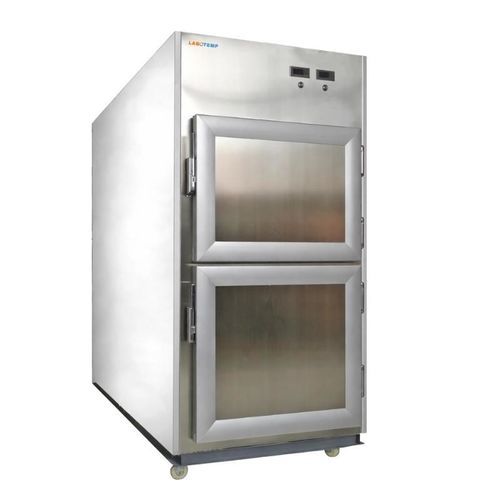

Body tray refrigerated mortuary cabinet MOR-05

2-bodyfront-loadingmodular

Product Overview Labotemp Mortuary Refrigerator MOR-05 is designed for safe, hygienic storage of human remains in hospitals, mortuaries and forensic departments. Constructed in SS 304 stainless steel for corrosion resistance and ease of cleaning. Engineered for reliable preservation with precise digital temperature control, independent compressors and smooth-glide removable body trays.

Key Benefits

• SS 304 medical-grade construction ensures hygienic surface and corrosion resistance.
• Precise temperature control (standard range 0 to -10°C) for consistent preservation.
• Enhanced safety: multi-type alarms, door alerts and locking system to protect remains and staff.
• Modular options and supplier support for customization and competitive procurement.

Features

• Extended storage capacity with two independent chambers and two removable body trays.
• 304 stainless steel inner and outer construction for durability and easy sanitation.
• Compact, all-in-one design with top-mounted compressors.
• Foamed urethane insulation (100 mm) for thermal stability.
• LED digital temperature control with 0.1°C accuracy.
• Independent compressor system (2 compressors) for separate chamber regulation.
• Stainless steel trays rated to 200 kg load capacity each.
• Silent nylon rollers and 5-inch universal wheels for smooth movement and positioning.
• Secure safety door with lock and 7-type alarm protection.
• Removable trays for handling and cleaning.

Applications

• Temperature-controlled preservation of human bodies in hospitals, mortuaries, funeral homes and forensic laboratories.

Specifications Temperature Range : Standard 0 to -10°C
Foamed Urethane Thickness (mm) : 100
Thickness of Stainless Steel : Outer: 1.0 mm, Body Tray: 1.0 mm, Inner: 0.6 mm
Refrigerant : R404A
Temperature Accuracy : 0.1°C
Compressor Place : Top of the freezer
Working Temperature (ambient) : 10–38°C
Compressor : Germany Secop / Chinese compressor (optional)
Compressor Number : 2 (independent control of each chamber)
Number of Body Tray : 2 (removable)
Door count : 2
Body Tray Load Capacity : 200 kg
Body Tray Size (mm) : 1940×580
External Size (mm) : 2060×800×1475
Inner Room Size (mm) : 1950×630×440
Chamber Height (mm) : 440
Rate of Work : 436W/1.2A
Voltage : 220V/50Hz
Material : Stainless steel 304
Packing Size (mm) : 2140×840×1575
Package : Plywood
Net Weight : 250 kg
Gross Weight : 280 kg

Technical Specifications

• Model: MOR-05
• Material: Stainless steel 304
• Temperature range (standard): 0 to -10°C
• Working (ambient) temperature: 10–38°C
• Temperature accuracy: 0.1°C
• Refrigerant: R404A
• Foamed urethane insulation thickness: 100 mm
• Compressor options: Germany Secop or Chinese compressor (optional)
• Compressor number: 2 (independent chamber control)
• Number of body trays: 2 (removable)
• Body tray size (mm): 1940 × 580
• Body tray load capacity: 200 kg
• Doors: 2 with safety lock
• Chamber inner size (mm): 1950 × 630 × 440
• External size (mm): 2060 × 800 × 1475
• Packing size (mm): 2140 × 840 × 1575; Package: Plywood
• Net weight: 250 kg; Gross weight: 280 kg
• Power rating: 436W / 1.2A; Voltage: 220V/50Hz
• Mobility: 5-inch universal wheels and silent nylon rollers
• Safety: 7-type alarm protection, door alerts, locking system
