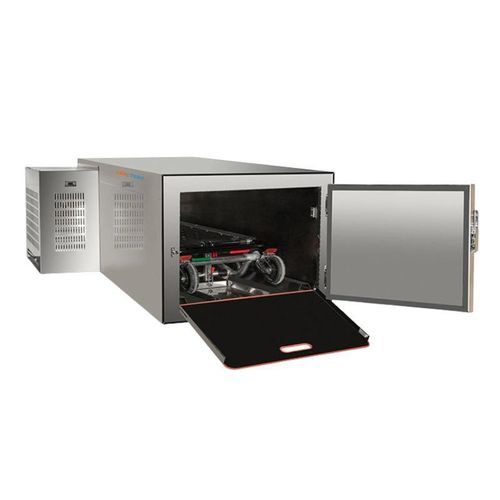

Body tray refrigerated mortuary cabinet MOR-04

1-bodyfront-loadingon casters

Product Overview
Labotemp Mortuary Refrigerator MOR-04 is a professional mortuary refrigerator engineered for safe, hygienic storage of human remains in hospitals, morgues, funeral homes and forensic centres. Constructed in medical-grade SS304 stainless steel for corrosion resistance and easy sanitation. Offers precise temperature control from 0°C to -10°C with ±0.1°C stability, independent chamber control and selectable compressor options (Germany Secop or Chinese). Includes lockable door, removable stainless-steel body tray and 5-inch universal wheels for mobility.

Key Benefits

• Medical-grade SS304 inner and outer body for hygienic maintenance and easy cleaning
• Precise temperature stability (±0.1°C) for controlled preservation
• Advanced safety: alarms for high/low temperature, power failure and sensor fault
• Easy relocation with 5-inch universal wheels and silent rollers
• Lockable door with low cold-loss seal to maintain internal environment

Features

• R404A refrigerant
• 304 stainless steel corrosion-resistant body
• All-in-one design for straightforward installation
• 100 mm eco-friendly foamed urethane insulation
• LED digital temperature controller
• Removable stainless-steel tray with smooth sliding (200 kg capacity)
• 7-type alarm protection system
• Silent rollers and removable trays for serviceability

Applications

• Controlled preservation and temporary storage of human bodies in hospitals, mortuaries, funeral homes and forensic departments

Optional Accessories

• Transportable folding stretcher (high-end)
• Vehicle inverter (12V or 24V, 3000W)

Technical specifications

• Model: MOR-04
• Material: Stainless steel 304 (inner & outer)
• Temperature range: 0 to -10°C (standard)
• Temperature accuracy/stability: ±0.1°C
• Refrigerant: R404A
• Insulation: 100 mm foamed urethane
• Compressor: Germany Secop or Chinese compressor (optional)
• Compressor placement: Back of the freezer
• Compressor number: 1 (independent control of each chamber)
• Number of body trays: 1 removable stainless steel tray
• Body tray load capacity: 200 kg
• Body tray size (mm): 1940 × 580
• External size (mm): 2280 × 800 × 600
• Inner room size (mm): 1950 × 630 × 440
• Chamber height (mm): 440
• Power consumption / Rate of work: 218W / 1.2A
• Voltage: 220V / 50Hz
• Packing: Plywood
• Packing size (mm): 2320 × 850 × 760
• Net weight: 120 kg
• Gross weight: 150 kg
• Mobility: 5-inch universal wheels with silent rollers
• Safety: Lockable door, low cold-loss seal, 7-type alarm protection
