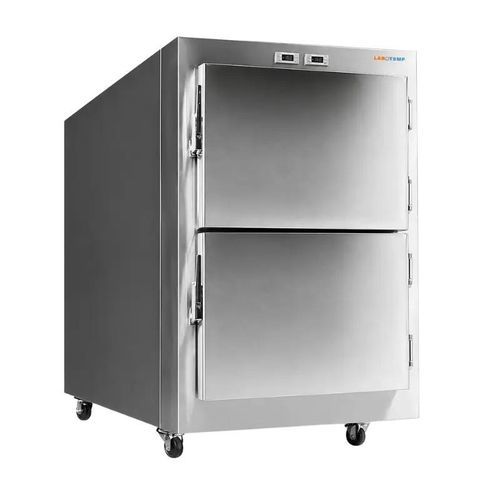

Body tray refrigerated mortuary cabinet MOR-11

2-bodyfront-loadingon casters

Overview
Labotemp Mortuary Refrigerator MOR-11 is a two-body mortuary unit designed for short- and medium-term preservation and controlled storage of deceased individuals in hospitals, morgues, forensic laboratories, pathology departments and funeral service facilities. The unit provides two independent chambers, each with its own refrigeration circuit and controller. Temperature is adjustable from +5°C to -18°C with an accuracy of ±0.1°C. Each stainless-steel body tray supports up to 200 kg.

Construction and Refrigeration
Interior and exterior panels are 304 stainless steel with 100 mm high-density polyurethane foam insulation. The MOR-11 uses R404A refrigerant and two independent Germany Secop compressors mounted at the rear to ensure compartment isolation and continuous operation. Rear-mounted compressors allow convenient maintenance access.

Safety, Monitoring and Handling
Features include an integrated digital LED temperature display for real-time monitoring, seven configurable alarm functions, secure door locks for controlled access, internal lighting, an internal drain for cleaning, removable stainless-steel trays on silent nylon rollers for low-effort handling and heavy-duty 5-inch universal wheels for mobility.

Key Selling Points

• Adjustable temperature range +5°C to -18°C suitable for refrigerated and frozen preservation.
• Independent dual cooling system with separate compressors and controllers for each chamber to maintain operation if one circuit fails.
• 304 stainless steel construction for hygienic surfaces and ease of cleaning.
• Removable trays with nylon rollers for smooth loading/unloading; each tray rated to 200 kg.
• Digital LED temperature display and seven alarm functions for continuous monitoring.
• Secure door-locking mechanism and rear-mounted compressors for controlled access and serviceability.
• Compact mobility with 5-inch universal heavy-duty wheels.

Applications

• Hospital mortuary and department storage
• Forensic laboratories and pathology departments
• Medical examiner facilities and autopsy preparation
• Funeral homes and mortuary management
• Disaster response centers for short- and medium-term body preservation

Detailed specifications (table)

• Model: MOR-11
• Temperature range: adjustable +5°C to -18°C (standard 5 to -15°C)
• Temperature accuracy: ±0.1°C
• Number of body trays: 2 (each tray rated up to 200 kg)
• Material: 304 stainless steel (outer 1.0 mm; tray 1.0 mm; inner 0.6 mm)
• Insulation: 100 mm high-density polyurethane foam
• Refrigerant: R404A
• Compressors: 2 independent Germany Secop compressors (rear-mounted)
• Power supply: 220V, 50Hz
• Power consumption: 436 W; Rated current: 1.2 A
• Chamber height: 440 mm; Number of doors: 2
• Dimensions (product): 2330 x 1060 x 1315 mm; Room size: 2000 x 890 x 480 mm; Package size: 2370 x 1110 x 1460 mm
• Gross weight: 350 kg
