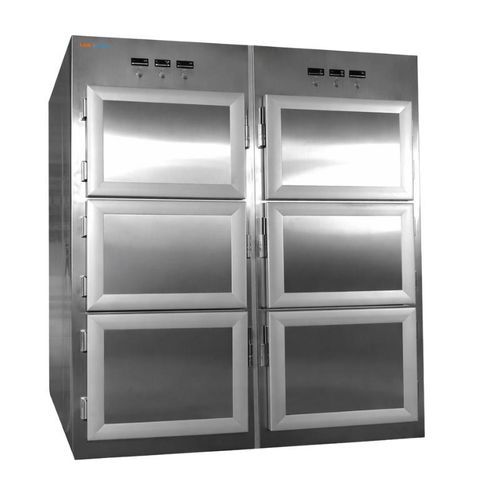

Body tray refrigerated mortuary cabinet MOR-08

6-bodyfront-loadingon casters

Overview
Labotemp MOR-08 mortuary refrigerator is a medical-grade refrigerated cabinet engineered for hygienic, temperature-controlled storage of human remains in hospitals, morgues, forensic laboratories and funeral homes. The unit features six independent chambers, each with its own compressor and temperature controller for precise, redundant cooling. Standard fresh-storage range is +2°C to +8°C (2–5°C recommended); adjustable operating range +5°C to -15°C (customizable to -18°C). Construction uses SS304 stainless steel and an all-in-one design for rapid deployment.

Design and operation
The MOR-08 is built for continuous B2B operation: 100 mm high-density foamed urethane insulation minimizes thermal loss and improves energy efficiency. Each removable stainless-steel body tray measures 1940×580 mm and supports up to 200 kg, running on silent nylon rollers with a common tray geometry compatible with lifting trolleys. Compressors are mounted on top for service access; working ambient 10°C–38°C.

Key Features

• Independent chamber cooling: one compressor and one temperature controller per chamber
• Medical-grade SS304 stainless steel construction (SS201/SS316 optional)
• 100 mm foamed urethane insulation for temperature stability and energy efficiency
• Removable stainless-steel body trays 1940×580 mm, 200 kg capacity each
• Silent nylon roller system and common tray design compatible with lifting trolleys
• Seven-condition alarm system (high temp, low temp, prolonged door opening, low voltage, sensor failure, power failure, low battery)
• Individual door locks with spare keys and four heavy-duty locking casters
• All-in-one integrated cabinet for quick on-site installation
• Optional USB temperature recording system for traceability

Applications

• Hospitals & healthcare facilities: temporary hygienic storage of bodies before identification, examination or release
• Forensic and medical examiner facilities: stable preservation for investigations and medico-legal procedures
• Anatomy and medical education: cadaver preservation for teaching and research
• Funeral homes & mortuary services: interim storage prior to embalming, transport or funeral arrangements
• Disaster response & DVI operations: high-capacity preservation during emergencies
• Research & pathology centers: reliable storage of cadavers and large specimens

Specifications

• Model: MOR-08
• Brand: Labotemp
• Number of chambers/doors: 6 / 6
• Material: SS304 stainless steel (SS201/SS316 optional)
• Body tray size: 1940 × 580 mm
• Tray load capacity: 200 kg per tray
• Chamber height: 440 mm
• Standard storage temperature: +2°C to +8°C (2–5°C recommended)
• Adjustable range: +5°C to -15°C (customizable to -18°C)
• Temperature accuracy: 0.1°C
• Refrigerant: R404A
• Compressors: 6 independent compressors (German SECOP standard / Chinese option)
• Rated power: 1308 W / 1.2 A
• Power supply: 220 V / 50 Hz (110 V / 60 Hz optional)
• Insulation: 100 mm high-density foamed urethane
• Wheels: 4 heavy-duty locking casters
• Alarm system: 7 conditions with 3 alarm modes
• Packing size (mm): 2140 × 1620 × 2075
• External dims (mm): 2060 × 1580 × 1975
• Inner room size (mm): 1950 × 630 × 440
• Net weight / Gross weight: 650 kg / 680 kg

Optional accessories

• USB temperature recording system / USB interface
