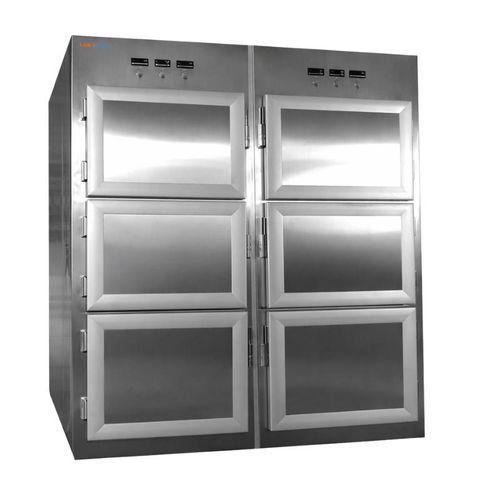

Body tray refrigerated mortuary cabinet MOR-15

6-bodyfront-loadingwith door

Product overview
Mortuary refrigerator MOR-15 is a six-compartment mortuary storage unit designed for controlled short-term preservation of human remains. Internal usable volume per chamber is sized to accept removable body trays (1940 × 580 mm) with a load capacity of 200 kg per tray. Standard operating temperature is 0 to -10°C, adjustable from +5 to -15°C, with ±1°C control accuracy.

Construction and operation
The cabinet is constructed in 304 stainless steel with 100 mm foamed-in-place urethane insulation. Each chamber accepts removable 304 stainless steel body trays on a robust sliding system. The refrigeration system uses a dual-compressor configuration: a main compressor servicing all six chambers and an independent standby compressor for redundancy. Independent temperature controllers per chamber, door locks with keys, audible/visual fault alarms and strong braked casters facilitate safe handling and operational continuity. Optional remote alarm and temperature-recording/USB interface are available.

Key features

• Six-compartment design with six removable body trays (1940 × 580 mm) rated 200 kg per tray
• Dual-compressor arrangement: main cooling compressor + independent standby compressor for increased reliability
• Temperature range: standard 0 to -10°C; adjustable +5 to -15°C; control accuracy ±1°C; independent control per chamber
• 304 stainless steel construction (316 stainless optional) with 100 mm foamed urethane insulation
• Removable stainless-steel trays with reinforced sliding system for safe handling
• Door lock system, high/low temperature, door-open and power-failure alarms
• 4 heavy-duty wheels with brakes for positioning

Applications

• Mortuary facilities
  Organized short-term storage and controlled preservation of bodies pending identification or transfer
• Hospitals & medical centers
  For hospital mortuary departments requiring secure temperature-controlled storage
• Funeral homes
  Supports temporary preservation before funeral services or transfers
• Medical colleges & teaching hospitals
  Controlled storage for teaching specimens and institutional use
• Forensic facilities
  Temporary storage pending forensic examination, autopsy or processing

Technical specifications

• Model: MOR-15
• Number of compartments: 6
• Number of body trays: 6
• Body tray size: 1940 × 580 mm
• Body tray load capacity: 200 kg per tray
• Material: 304 stainless steel (316 optional)
• Doors: 6
• Working ambient temperature: 10–50°C
• Temperature: Standard 0 to -10°C; Adjustable +5 to -15°C
• Temperature accuracy: ±1°C
• Compressor configuration: 2 compressors (main + independent standby), Germany SECOP compressor
• Compressor control: Independent control per chamber
• Insulation thickness: 100 mm foamed-in-place urethane
• External size (W×D×H): 2280 × 1580 × 1785 mm
• Packing size: 2320 × 1640 × 1900 mm
• Gross weight: 680 kg
• Voltage: 220V/50Hz (110V/60Hz optional)
• Power rating: 1680 W / 1.2 A
• Alarms: High/low temperature, door open, power failure

Optional accessories

• Remote alarm
• Temperature recording system / USB interface
• LED lighting
• Drain system
• UV sterilization
• Ozone purification
• 316 stainless steel construction option
