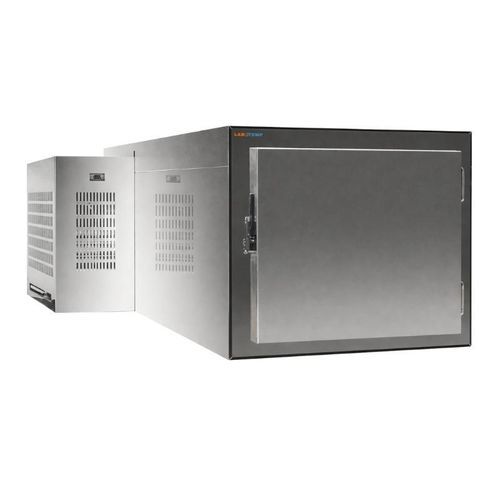

Body tray refrigerated mortuary cabinet MOR-03

1-bodyside-loadingon casters

Overview
The MOR-03 mortuary refrigerator is designed for controlled, dignified storage of human remains in hospitals, morgues, funeral homes and forensic facilities. Constructed in medical-grade stainless steel (304) for corrosion resistance and easy sanitation. Documentation includes differing temperature references; confirm the required operating range before ordering.

Why choose MOR-03

• Precise temperature control: LED digital controller with ±0.1 °C accuracy.
• Reliable cooling: independent high-efficiency compressor (Germany Secop standard; Chinese compressor optional).
• Comprehensive safety: multi-point alarms for high/low temperature, power failure and door status.
• Ergonomic handling: lockable side-opening door, removable stainless steel tray with silent rollers and 5-inch universal wheels for safe movement.

Features

• ISO & CE certified
• 304 stainless steel interior and exterior
• All-in-one design for straightforward installation
• Foamed urethane insulation for fast cooling (documentation references 80 mm and 100 mm)
• LED digital temperature display and control
• Independent compressor system per chamber (Secop standard)
• Removable stainless steel trays rated to 200 kg with silent rollers
• Side-open safety door with lock
• 7-type alarm protection (high/low temp, power failure, door alerts etc.)
• Smooth-sliding removable trays
• 5-inch universal wheels with nylon rollers

Applications

• Preservation and temporary storage of bodies in hospitals, mortuaries, funeral homes and forensic laboratories

Technical specifications

• Temperature range: standard 0 °C to -10 °C (please confirm required range before order)
• Foamed urethane thickness: 100 mm (documentation also references 80 mm)
• Stainless steel thickness: outer 1.0 mm; body tray 1.0 mm; inner 0.6 mm
• Refrigerant: R404A
• Temperature accuracy: ±0.1 °C
• Compressor location: rear of unit
• Working ambient temperature: 10–38 °C
• Compressor: Germany Secop (standard) / Chinese compressor (optional)
• Number of compressors: 1 (independent control)
• Number of body trays: 1
• Door count: 1 (side-open)
• Body tray load capacity: 200 kg
• Body tray size (mm): 1940 × 580
• External size (mm): 2280 × 800 × 600
• Inner room size (mm): 1950 × 630 × 440
• Chamber height (mm): 440
• Rate of work: 218 W / 1.2 A
• Voltage: 220 V / 50 Hz
• Material: stainless steel 304
• Packing size (mm): 2320 × 850 × 760
• Package: plywood
• Net weight: 120 kg
• Gross weight: 150 kg
