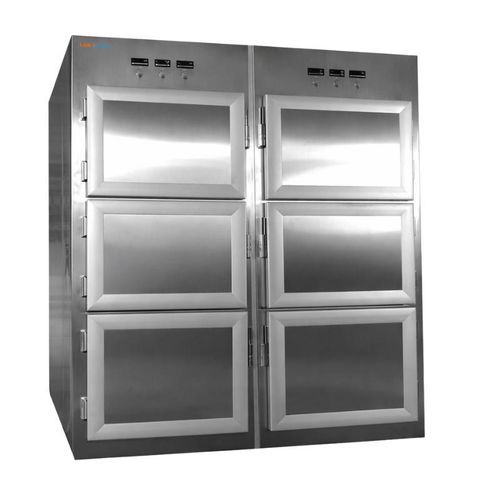

6-body refrigerated mortuary cabinet MOR-14

front-loadingwith door6-door

Product overview
Labotemp Mortuary Refrigerator MOR-14 is a mortuary refrigeration unit for temporary preservation of human remains in hospitals, mortuaries, funeral facilities and medical institutions. The configuration provides 6-body capacity arranged in 2 compartments and 3 levels, with stainless steel interior and exterior and 80 mm CFC-free polyurethane insulation. Six individual doors with chrome fittings and key locks and heavy-duty stainless steel litter trays on roller-track supports enable organized storage and handling.

Design & operation
The unit features a dual cooling system with two independent refrigeration machines and automatic changeover in case of disturbance. High-power evaporators open to the interior are connected to the refrigeration units. The refrigeration system is semi-hermetic, air-cooled and vibration-free, using R404A (ozone-friendly, CFC-free). Automatic electrical defrosting, front-side control panel, digital internal temperature display, audio/visual alarm and a potential-free contact for remote alarm are included. Designed for operation in ambient temperatures up to +46°C.

Key features

• Storage capacity: 6 bodies (2 compartments × 3 levels)
• Preservation temperature: +4°C ±1°C
• Dual independent cooling units with automatic changeover for redundancy
• Stainless steel interior and exterior for corrosion resistance
• Six individual locked doors with card holders and interior lighting

Main specifications

• Capacity: 6 corpses
• Compartment configuration: 2 compartments, 3 levels
• Preservation temperature: +4°C (±1°C)
• Suitable ambient temperature: up to +46°C
• Exterior/interior material: corrosion-proof stainless steel
• Insulation: 80 mm polyurethane foam, CFC-free
• Power supply: 220V, 50Hz, 1 Ph
• Approx. exterior dimensions after mounting: 1910 × 2260 × 2260 + 400 mm

Door & tray system

• Door configuration: 6 single doors, 180° opening
• Door fittings: chrome fittings and key locks; card holders on all doors
• Door opening dimensions (W × H): 68 × 50 cm
• Litter trays: 6 heavy-gauge stainless steel trays (DIN 1.4301), dimensions 206 × 62 × 9 cm
• Tray supports: roller tracks with 5 rollers per tray; one roller serves as stop roll
• Interior lighting: yes

Refrigeration & temperature system

• Refrigerating machine: double cooling system with 2 independent units
• Automatic changeover: yes, in case of disturbance or temperature failure
• Refrigeration type: semi-hermitic, air-cooled, vibration-free
• Refrigerant: R404A (ozone-friendly, CFC-free)
• Evaporators: high-power evaporators open to the interior; automatic electrical defrosting

Control, alarm & additional features

• Control panel: front-side control panel
• Temperature indication: digital internal temperature display
• Alarm system: audio/visual alarm and potential-free contact for remote alarm
• Assembly: hook-lock assembly for component parts
