Laboratory autoclave VEA-01

for sterilization servicesclinicalmicrobiology

Overview

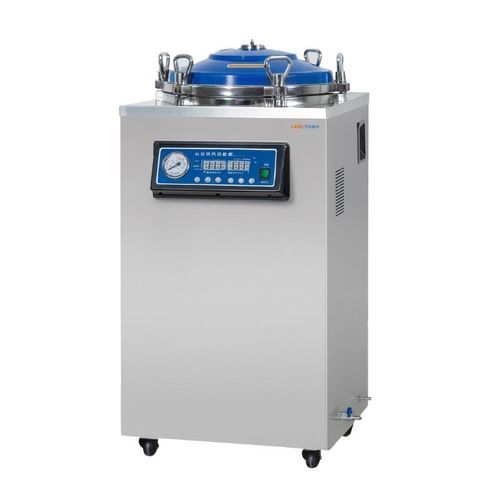

Labotemp Vertical Autoclave Machine VEA-01 is a compact 35 liter medical autoclave engineered for precise and safe sterilization in research laboratories, diagnostic centers, universities and small healthcare facilities. It features a high-quality stainless steel chamber, microcomputer automatic control and an intuitive digital display with touch interface. The system allows flexible sterilization parameter settings to ensure consistent performance for glassware, culture media, surgical instruments and laboratory tools where controlled steam sterilization at up to 134°C is required.

Key Operational Details
Operates at a rated working pressure of 0.22 MPa with a sterilization temperature range of 116°C–134°C and adjustable cycle time from 4 to 120 minutes. Safety systems include over temperature protection, over pressure self-discharge, low water level protection and anti-dry-burning safeguards. The unit provides automatic exhaust steam at cycle end, automatic cooling air function and buzzer reminders. Documentation can be supported via an optional external printer.

Why Choose VEA-01

• Compact Capacity: 35 liter chamber suitable for small to mid-scale laboratory and clinical sterilization workloads
• Advanced Safety System: Integrated over-temperature, over-pressure and low water level protections for stable and secure sterilization cycles
• Certified Quality Assurance: Manufactured under ISO 13485 compliant practices and CE certified standards

Features

• Digital display and touch buttons
• Bolt-structure design; high quality stainless steel material
• Microcomputer automatic control with arbitrary set of sterilization parameters
• Standard test interface
• Includes stainless steel bucket or basket
• Buzzer reminder after sterilization and automatic stop
• Automatic cooling air and automatic exhaust of steam at sterilization end

Applications

• Research Laboratories
  Suitable for sterilizing laboratory glassware, instruments, metal tools, culture media, solutions and other compatible materials used in research and experimental workflows
• Microbiology Laboratories
  Supports sterilization of culture media, laboratory instruments, glassware and solutions used in microbiological procedures
• Diagnostic & Clinical Laboratories
  Suitable for routine steam sterilization of compatible laboratory instruments, glassware and metal tools
• Universities & Academic Laboratories
  Provides practical sterilization capacity for teaching laboratories and research facilities
• Healthcare Facilities
  Suitable for sterilizing compatible surgical instruments and other heat- and moisture-resistant items used in small healthcare environments
• Clinics
  Compact vertical construction makes the unit suitable for clinics requiring reliable sterilization of reusable instruments and laboratory materials
• Quality Control Laboratories
  Supports routine sterilization for testing and quality-control procedures
• Laboratory Waste Decontamination
  Suitable for steam treatment and decontamination of compatible laboratory waste materials where appropriate procedures are followed

Optional Accessories

• External printer

Caractéristiques / spécifications techniques

• Volume: 35 L
• Working Temperature (rated): 134°C
• Sterilization Temperature Setting Range: 116°C–134°C
• Design Temperature: 139°C
• Rated Working Pressure: 0.22 MPa
• Design Pressure: 0.25 MPa
• Sterilization Time Setting Range: 4–120 min
• Voltage: AC 220 V, 50 Hz
• Power: 2.5 kW
• Chamber Dimensions: 300 × 500 mm
• Bucket Dimension: 280 × 400 mm
• Outer Dimension (L × W × H): 400 × 400 × 860 mm
• Packing Size (L × W × H): 550 × 500 × 1030 mm
• Gross Weight: 58 kg
• Net Weight: 41 kg
• Materials: High-quality stainless steel chamber; bolt-structure construction
• Control: Microcomputer automatic control with digital display and touch interface
• Safety: Over-temperature protection, over-pressure self-discharge, low water level protection, anti-dry-burning protection
• Functions: Automatic exhaust steam, automatic cooling air, buzzer reminder
