Medical autoclave VEA-08

laboratoryfor sterilization servicespoint-of-care

Product Overview

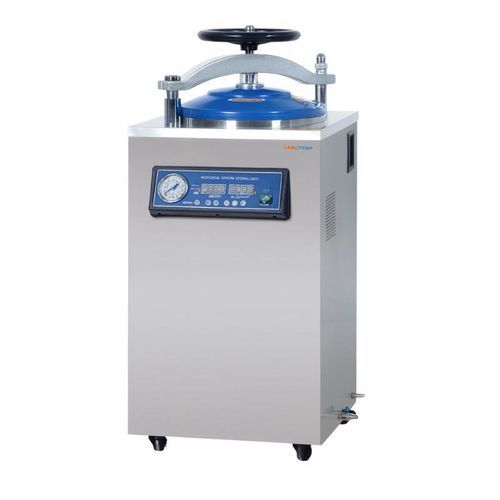

Labotemp Vertical Autoclave Sterilizer VEA-08 is a 35 L vertical steam autoclave with built-in drying, designed for laboratories, diagnostic centers and small medical units that require efficient sterilization and reduced moisture in one cycle. It features a stainless-steel chamber and a handwheel quick-opening door for secure sealing and stable operation at a rated working pressure of 0.22 MPa. Sterilization temperature range: 116°C–134°C; adjustable cycle time: 4–120 minutes, suitable for glassware, culture media, surgical instruments and wrapped loads benefiting from post-sterilization drying.

Key Benefits

• Built-in drying reduces residual moisture after sterilization to shorten turnaround time
• Comprehensive safety: interlock and multi-level protections for safe operation in medical environments
• Compact footprint: suited to small labs and point-of-care units requiring sterilization with drying

Features

• Microcomputer automatic control for precise cycle management
• Quick opening mechanism — handwheel door with smooth translation structure
• Durable stainless-steel chamber for corrosion resistance and hygiene
• Digital display with touch-button operation for clear parameter setting
• Integrated safety interlock prevents unsafe operation
• Multi-level protection: over-temperature protection, over-pressure auto-release, low water cutoff and anti-dry heating
• Self-expanding sealing design for reliable chamber tightness
• Automatic cold-air purging to improve sterilization efficiency
• Automatic steam exhaust after cycle completion
• End-of-cycle audible alert (buzzer) with automatic shutdown
• Flexible loading options: supplied with stainless-steel bucket or basket
• Drying function to enhance post-sterilization handling

Applications

• Sterilization of culture media, glassware, surgical instruments and laboratory waste in research labs, hospitals and diagnostic centers
• Supports pharmaceutical QC and microbiology workflows requiring 116–134°C steam cycles
• Suitable for academic labs, biotech facilities and GMP-aligned environments needing controlled, documented sterilization

Optional Accessories

• External printer
• Automatic water filling system

Technical Specifications

• Sterilization Temperature Range: 116°C – 134°C
• Rated Working Temperature: 134°C
• Design Temperature: 139°C
• Sterilization Time Range: 4 – 120 minutes
• Rated Working Pressure: 0.22 MPa
• Design Pressure: 0.25 MPa
• Chamber Capacity: 35 Liters
• Chamber Size: Ø350 × 400 mm
• Bucket Size: Ø330 × 320 mm
• Basket Size: Ø320 × 350 mm
• Control System: Microcomputer automatic control
• Display: Digital display with touch buttons
• Safety System: Interlock system with multi-level protection
• Protection Features: Over-temperature, over-pressure auto release, low water level cutoff, anti-dry burning
• Material: High-quality stainless-steel chamber
• Air Exhaust System: Automatic cold-air purge
• Steam Exhaust: Automatic after sterilization
• Operation Alert: Buzzer with automatic stop
• Power Consumption: 3.5 kW
• Voltage / Frequency: AC 220V, 50 Hz
• External Dimensions: 480 × 480 × 1000 mm
• Packing Dimensions: 580 × 630 × 1130 mm
• Gross / Net Weight: 79 / 58 kg
