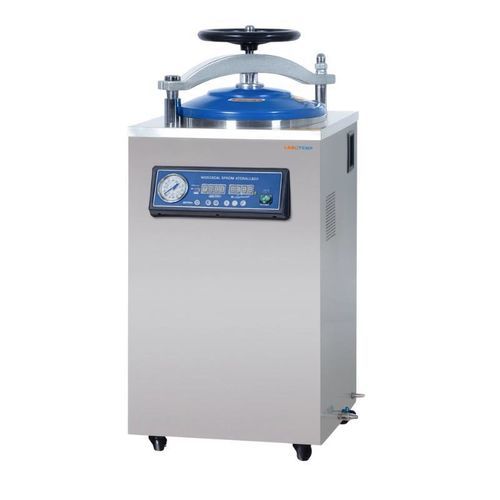

Medical autoclave VEA-07

laboratoryfor researchfor healthcare facilities

Product Overview
VEA-07 is a 100 L drying-type vertical steam autoclave designed for laboratories, medical facilities and research units requiring controlled steam sterilization with reduced post-cycle moisture. Sterilization temperature range: 116–134°C; rated working temperature 134°C; design temperature 139°C. Rated working pressure: 0.22 MPa; design pressure: 0.25 MPa.

Control & Safety
The unit is equipped with a microcomputer automatic controller with digital display and touch buttons for accurate program configuration. A hand-wheel quick-opening mechanism combined with a self-expanding seal ensures secure chamber closure. Automatic cold-air discharge and automatic steam exhaust improve drying efficiency. Built-in safety devices include an interlock, over-pressure self-discharge, low-water cutoff and anti-dry-heating protection.

Key Benefits

• Improved drying: automatic air and steam discharge reduces residual moisture after sterilization
• Stable steam performance: rated and design pressure parameters for consistent sterilization conditions
• Safe operation: multi-level protection and interlock suitable for institutional use

Features

• Digital display with touch-button program control
• Integrated drying function (drying vertical steam sterilizer)
• Hand-wheel quick-opening structure for easy loading and unloading
• Stainless-steel chamber with supplied basket or bucket
• Self-expanding seal for reliable airtightness
• Standard test interface
• Protections: over-temperature, over-pressure, low-water cutoff and anti-dry-burn
• Buzzer reminder and automatic stop at cycle end

Applications

• Sterilization of wrapped and unwrapped instruments, dressing materials, laboratory glassware and research equipment where post-cycle drying is required
• Routine instrument sterilization in medical and healthcare facilities
• Pharmaceutical and research laboratories processing glassware, containers and instruments

Optional Accessories

• External printer
• Automatic water intake

Technical Specifications

• Volume: 100 L
• Rated working temperature: 134°C
• Design temperature: 139°C
• Sterilization temperature range: 116–134°C
• Design pressure: 0.25 MPa
• Rated working pressure: 0.22 MPa
• Sterilization time range: 4–120 min
• Chamber size (mm): 450 × 650
• Bucket dimension (mm): 420 × 540
• Basket dimension (mm): 410 × 300 × 2
• Outer dimension (mm): 555 × 555 × 1250
• Packing size (mm): 690 × 650 × 1410
• Gross weight: 133 kg
• Net weight: 106 kg
• Power: 4.5 kW
• Voltage: AC 220 V, 50 Hz
• Display: digital display + touch buttons
• Sterilizer type: drying vertical steam sterilizer
• Air removal: natural / steam displacement
