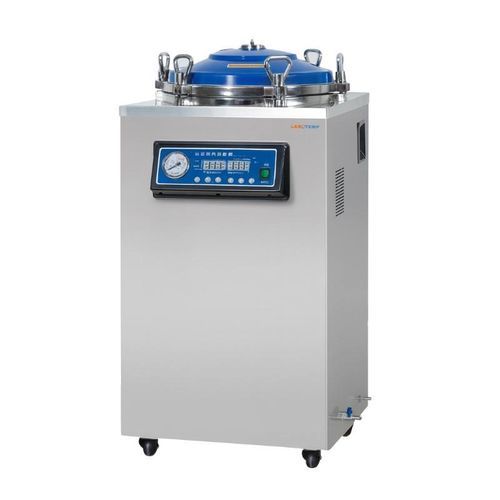

Laboratory autoclave VEA-03

for sterilization servicesfor central sterilization supply unitsclinical

Overview
Labotemp Vertical Autoclave VEA-03 is a 120 L steam sterilizer intended for routine steam sterilization in hospitals, pharmaceutical and clinical laboratories, research institutes and central sterile departments. It features a stainless steel chamber with bolt locking, rated working pressure 0.22 MPa and an adjustable sterilization temperature range of 116°C–134°C with cycle times from 4 to 120 minutes. Suitable for glassware, culture media, surgical instruments, dressings and laboratory equipment compatible with steam sterilization.

Controls & Safety
The VEA-03 uses microcomputer automatic control with digital display and touch keys for accurate parameter setting. Built-in protections include over-temperature control, automatic over-pressure relief, low-water-level cutoff and anti-dry heating protection. Automatic cooling air and automatic steam exhaust at the end of cycle reduce turnaround time. Buzzer alert and optional external printer support process monitoring and traceability.

Key Benefits

• Consistent cycle accuracy via stable temperature and pressure control
• Operator-oriented controls with programmable sterilization parameters
• Multi-layer safety features for secure, long-term operation

Features

• 120 L chamber capacity
• Bolt-lock structure; stainless steel chamber
• Microcomputer automatic control with configurable sterilization programs
• Digital display and touch buttons; standard test interface
• Automatic protections: over-temperature; over-pressure self-discharge; low water level cut-off; anti-dry heating
• Includes stainless steel bucket or basket
• Buzzer reminder at cycle end and automatic stop
• Automatic cooling air and automatic exhaust of steam at sterilization end

Applications

• Hospitals & central sterile departments: sterilization of surgical instruments, glassware, metal tools and heat-/moisture-resistant textiles
• Pharmaceutical laboratories: steam sterilization of glassware, instruments, media and solutions
• Microbiology laboratories: sterilization of culture media, glassware and compatible instruments
• Research institutes & clinical labs: routine sterilization of laboratory equipment and metal tools
• Laboratory waste decontamination where steam treatment is appropriate
• Medium- to high-volume sterilization: 120 L vertical configuration for increased processing capacity with compact footprint

Optional Accessories

• External printer

Specifications (table)
General Specifications
Volume: 120 L
Working Temperature (rated): 134°C
Voltage: AC 220 V, 50 Hz
Power: 4.5 kW

Sterilization Parameters
Design Temperature: 139°C
Sterilization Temperature Setting Range: 116°C–134°C
Design Pressure: 0.25 MPa
Sterilization Time Setting Range: 4–120 min
Rated Working Pressure: 0.22 MPa

Chamber Dimensions
Chamber internal dimensions (mm): 450 × 760
Bucket / basket dimensions (mm): 420 × 680

Physical Dimensions
Outer dimensions (L × W × H, mm): 555 × 599 × 1200
Packing size (L × W × H, mm): 690 × 650 × 1330
Gross weight: 108 kg
Net weight: 82 kg

Technical Specifications

• Model: VEA-03
• Brand: Labotemp
• Chamber capacity: 120 L
• Rated working pressure: 0.22 MPa
• Design pressure: 0.25 MPa
• Working temperature (rated): 134°C
• Sterilization temperature range: 116°C–134°C
• Design temperature: 139°C
• Sterilization time range: 4–120 minutes
• Power: 4.5 kW
• Voltage / Frequency: AC 220 V, 50 Hz
• Chamber internal dimensions: 450 × 760 mm
• Bucket / basket dimensions: 420 × 680 mm
• Outer dimensions (L×W×H): 555 × 599 × 1200 mm
• Packing size (L×W×H): 690 × 650 × 1330 mm
• Gross weight: 108 kg; Net weight: 82 kg
• Control: Microcomputer automatic control with digital display and touch interface
• Safety features: over-temperature protection; over-pressure self-discharge; low water level protection; anti-dry heating
• Additional functions: automatic cooling air; automatic exhaust steam at end of sterilization; buzzer alert
• Accessories: stainless steel bucket or basket; optional external printer
