Laboratory autoclave VEA-06

microbiologyfor the pharmaceutical industryblood bank

Product Overview

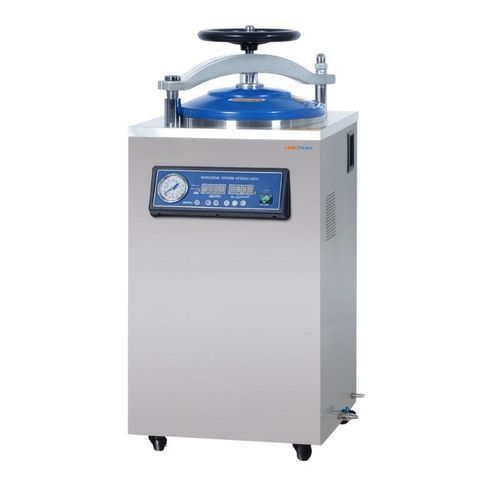

Labotemp Vertical Steam Sterilizer VEA-06 is a 50 L vertical autoclave with integrated drying function, designed for laboratories, blood banks, research institutes and clinical facilities that require reliable steam sterilization and improved post-cycle dryness. The unit features a stainless-steel chamber (Ø350 × 525 mm) suitable for medium-batch processing of glassware, wrapped instruments, dressing materials and laboratory containers. It supports sterilization temperatures from 116°C to 134°C with adjustable cycle times from 4 to 120 minutes. The autoclave includes a hand-wheel quick opening with self-expanding seal, microcomputer automatic control with digital display and touch buttons, automatic cold-air admission and automatic steam exhaust to reduce residual moisture, plus multiple safety protections including safety interlock, over-temperature protection, over-pressure self-discharge, low-water-level cutoff and anti-dry-heat protection.

Key Benefits

• Enhanced drying support: improves instrument readiness and reduces manual post-processing
• Stable heating performance: 3.5 kW power ensures uniform steam generation
• Medium-batch efficiency: optimized chamber size for balanced capacity and workflow control

Features

• High thermal retention and uniform steam distribution
• Hand-wheel quick-opening structure for easy operation
• Stainless-steel chamber and durable construction
• Safety interlock to prevent accidental opening during cycle
• Self-expanding seal for reliable airtight performance
• Built-in drying function to reduce handling after sterilization
• Standard test interface for process validation
• Protections: over-temperature, over-pressure, low-water and anti-dry-burn
• Includes stainless-steel bucket or basket
• Buzzer reminder and automatic stop after cycle

Applications

• Laboratory Applications
  Suitable for sterilizing laboratory glassware, instruments, stainless-steel tools, culture media, solutions and laboratory containers
• Medical & Clinical Facilities
  Designed for sterilizing wrapped and unwrapped medical instruments, dressing materials and other heat- and moisture-resistant equipment
• Pharmaceutical Laboratories
  Suitable for sterilizing compatible glassware, instruments, containers and materials used in pharmaceutical research and quality control
• Microbiology & Research Laboratories
  Supports sterilization of laboratory tools, glassware, culture media and other materials used in microbiology and research workflows
• Hospitals & Healthcare Facilities
  Suitable for routine sterilization of reusable instruments and heat-resistant materials in hospitals, clinics, diagnostic centers and healthcare facilities
• Blood Banks
  Useful for sterilizing compatible laboratory equipment, glassware and reusable instruments used in blood processing and testing environments
• Universities & Academic Laboratories
  Ideal for teaching, research and routine laboratory sterilization where reliable steam processing and post-cycle drying are required
• Quality Control Laboratories
  Supports consistent sterilization of laboratory equipment and materials used for testing, analysis and quality assurance procedures

Optional Accessories

• External printer
• Automatic water filling system

Technical Specifications

• Volume: 50 L
• Working temperature (rated): 134°C
• Power: 3.5 kW
• Voltage: AC 220 V, 50 Hz
• Design temperature: 139°C
• Sterilization temperature range: 116–134°C
• Design pressure: 0.25 MPa
• Rated working pressure: 0.22 MPa
• Sterilization time range: 4–120 min
• Chamber size (mm): Ø350 × 525
• Bucket dimension (mm): 330 × 460
• Basket dimension (mm): 320 × 240 × 2
• Air removal: Natural / steam displacement
• Outer dimension (mm): 480 × 480 × 1120
• Packing size (mm): 580 × 630 × 1230
• Gross weight: 106 kg
• Net weight: 80 kg
