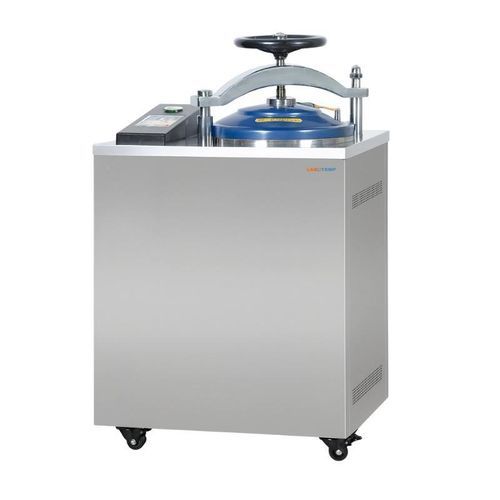

Laboratory autoclave VEA-09

for sterilization servicesfor the pharmaceutical industryfor research

Product overview Labotemp Automatic Vertical Autoclave VEA-09 is a 100 L vertical autoclave for laboratories, hospitals and pharmaceutical facilities requiring reliable sterilization. The unit includes a 100 L stainless steel chamber, microcomputer automatic control for setting and monitoring sterilization cycles, precise temperature control, integrated drying, automatic steam exhaust, cold air discharge and internal steam circulation to ensure uniform sterilization and effective post-sterilization handling. Safety features include over-temperature protection, over-pressure self-discharge, low water level protection and anti-dry burning safeguards.

Key features

• Fully automatic operation
• Hand-wheel translation quick-opening lid for secure and easy access
• Stainless steel chamber for corrosion resistance
• Microcomputer automatic control with adjustable sterilization parameters
• Digital display with touch buttons for user operation
• Integrated drying function
• Safety interlocking system to prevent unsafe operation
• Self-expanding sealing structure for reliable chamber sealing
• Automatic protection with over-temperature and over-pressure safeguards
• Low water level protection and anti-dry burning device
• Automatic cold air discharge and steam exhaust for uniform cycles
• Internal steam circulation for even heat distribution
• Standard test interface for validation and monitoring
• Stainless steel bucket or basket for flexible loading
• Buzzer alert and automatic shutdown after cycle completion

Applications

• Sterilization of culture media, glassware, surgical instruments and laboratory tools
• Use in microbiology laboratories, pharmaceutical quality control, hospitals and research labs
• Suitable for routine sterilization, infection control and GMP-compliant processes

Specifications (table) Working Temperature: 134°C
Volume: 100 L
Power: 4.5 kW
Voltage: AC 220V, 50Hz
Design Temperature: 139°C
Rated Working Pressure: 0.22 MPa
Sterilization Temperature Range: 116°C – 134°C
Sterilization Time: 4 – 120 min
Chamber Volume (dimensions): Ø450 × 650 mm
Bucket Dimension: Ø420 × 540 mm
Basket Dimension: Ø410 × 300 × 2 mm
Outer Dimension: 788 × 588 × 1255 mm
Net Weight: 129 kg
Gross Weight: 156 kg
Package Size: 820 × 650 × 1380 mm

Technical specifications

• Model: VEA-09
• Chamber capacity: 100 L
• Working temperature: 134°C (sterilization range 116–134°C)
• Design temperature: 139°C
• Rated working pressure: 0.22 MPa
• Power consumption: 4.5 kW
• Power supply: AC 220V, 50 Hz
• Sterilization time setting range: 4–120 minutes
• Chamber dimensions: Ø450 × 650 mm
• Bucket: Ø420 × 540 mm
• Basket: Ø410 × 300 × 2 mm
• Outer dimensions (W×D×H): 788 × 588 × 1255 mm
• Net weight: 129 kg; Gross weight: 156 kg
• Package size: 820 × 650 × 1380 mm
