Medical autoclave VEA-02

surgerymedical wasteclinical

Product Overview

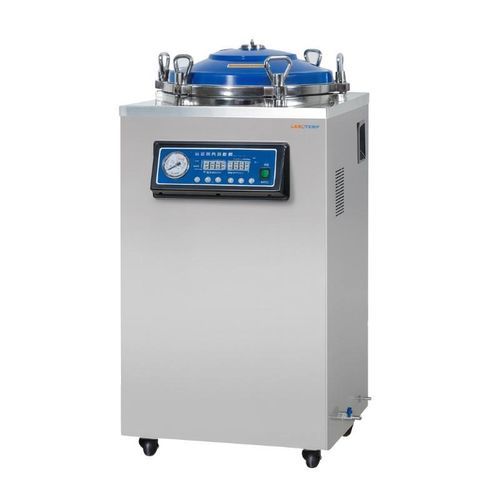

Labotemp Vertical Autoclave VEA-02 is a 75 L vertical steam sterilizer engineered for medium-volume sterilization in hospitals, clinical and diagnostic laboratories, research facilities and pharmaceutical quality control units. It features a stainless steel chamber and a bolt-lock lid. Rated working pressure is 0.22 MPa; sterilization temperature range 116–134°C; sterilization cycle adjustable from 4 to 120 minutes. Suitable for sterilizing glassware, culture media, surgical instruments, laboratory tools and other heat-resistant materials, as well as compatible laboratory waste.

Control & Safety
The VEA-02 uses microcomputer automatic control with digital display and touch buttons for precise parameter setting. Standard test interface supports routine validation. Integrated safety systems include over-temperature protection, automatic overpressure discharge, low-water-level protection and anti-dry-burning protection. Automatic air cooling and end-of-cycle steam exhaust improve workflow. Audible alarm and optional external printer support process monitoring and documentation.

Why choose Labotemp VEA-02

• Appropriate capacity: 75 L chamber optimised for medium clinical and laboratory workloads
• Multi-level safety features suitable for medical and diagnostic environments
• Manufactured under certified quality practices (ISO 13485) with CE conformity

Features

• ISO/CE certified
• Bolt-lock structure; stainless steel construction
• Microcomputer automatic control with freely adjustable sterilization parameters
• Digital display and touch buttons; standard test interface
• Automatic protections: over-temperature; overpressure automatic discharge; low-water-level protection; anti-dry-burning protection
• Includes stainless steel bucket or basket
• Buzzer reminder at sterilization end and automatic stop
• Automatic air cooling and automatic exhaust at sterilization end

Applications

• Hospital sterilization departments: surgical instruments, trays, metal equipment
• Clinical & diagnostic laboratories: routine instrument and glassware sterilization
• Pharmaceutical QC laboratories: sterilization of glassware and materials used in testing
• Research and academic laboratories: medium-volume sterilization for teaching and research
• Microbiology laboratories: sterilization of culture media and related items
• Laboratory waste decontamination: steam treatment of compatible waste

Optional Accessories

• External printer

Technical Specifications

• Model: VEA-02
• Chamber capacity: 75 L
• Rated working pressure: 0.22 MPa
• Sterilization temperature range: 116℃–134℃
• Working temperature (rated): 134℃
• Design temperature: 139℃
• Design pressure: 0.25 MPa
• Sterilization time setting range: 4–120 min
• Voltage: AC 220 V, 50 Hz
• Power: 4.5 kW
• Chamber internal dimensions: 400 × 625
• Bucket dimension: 380 × 560
• Basket dimension: 410 × 300 × 2
• Outer dimension (L × W × H): 525 × 525 × 1060
• Packing size (L × W × H): 630 × 680 × 1190
• Gross weight: 82 kg
• Net weight: 61 kg
