Dental autoclave VEA-04

laboratorymicrobiologyfor research

Product overview

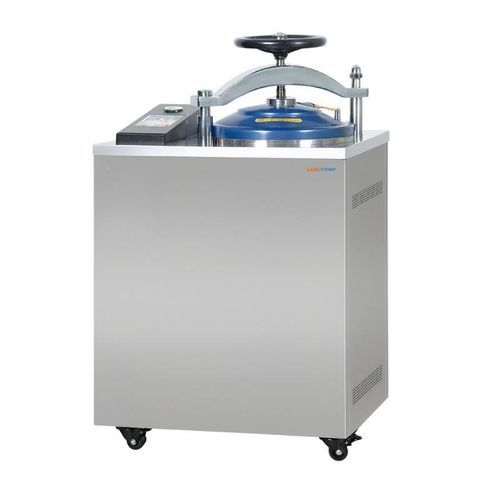

Labotemp Vertical Autoclave VEA-04 is a 35 L automatic vertical steam sterilizer for laboratories, research units and small clinical facilities requiring controlled steam sterilization. It uses three‑time pre‑vacuum cycles to improve air removal and steam penetration for wrapped, hollow or porous loads. Operating range: 116°C–134°C; rated working pressure 0.22 MPa; heating power 3.5 kW.

Key functional highlights

• Microcomputer automatic control with LED touch interface for repeatable cycle settings
• Automatic water filling and compatibility with external steam generator for continuous operation
• Cold‑air discharge and automatic exhaust to optimise cycle efficiency and drying
• Vacuum pump air removal (three‑time pre‑vacuum) for improved sterilization of complex loads
• Built‑in printer for cycle documentation and traceability

Features

• LED touch screen control
• Hand‑wheel quick‑opening lid
• Stainless‑steel chamber with self‑expanding seal
• Safety interlock and standard test interface
• Over‑temperature, over‑pressure, low‑water and anti‑dry‑burn protection
• Automatic cold‑air discharge & steam exhaust, audible alarm and automatic stop
• Includes stainless‑steel bucket or basket

Applications

• Hospitals & Clinical Facilities
  Sterilization of compatible surgical, dental and clinical instruments including wrapped and hollow items.
• Pharmaceutical & Microbiology Laboratories
  Sterilization of glassware, instruments, culture materials and heat‑resistant containers.
• Research & Academic Laboratories
  Routine sterilization of lab instruments, reusable equipment and culture‑related items.
• Dental Practices
  Effective sterilization for porous, wrapped and complex dental instruments requiring deep steam penetration.

Specifications
General Specifications
Model: VEA‑04
Volume: 35 L
Power: 3.5 kW
Voltage: AC 220 V, 50 Hz

Sterilization Parameters
Operating temperature range: 116°C–134°C
Rated working temperature: 134°C
Design temperature: 139°C
Design pressure: 0.25 MPa
Rated working pressure: 0.22 MPa

Chamber Dimensions
Chamber size: 350 × 400 mm
Bucket dimension: 330 × 320 mm
Basket dimension: 320 × 350 mm

Operation
Air removal: Vacuum pump (three‑time pre‑vacuum)
Automatic water filling: Standard (automatic)
External steam generator: Compatible

Physical Dimensions
Outer dimension (L × W × H): 696 × 496 × 940 mm
Packing size (L × W × H): 790 × 610 × 1130 mm
Net weight: 115 kg
Gross weight: 130 kg
