Laboratory autoclave VEA-10

for sterilization servicesfor researchfor healthcare facilities

Overview

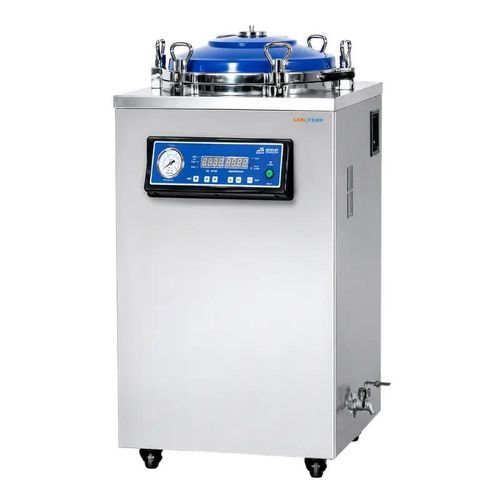

Labotemp Vertical Autoclave VEA-10 is a 150 L vertical steam sterilizer engineered for high-volume, reliable sterilization of laboratory glassware, instruments, culture media, surgical tools and reusable medical supplies in hospitals, research and pharmaceutical facilities. The microcomputer automatic control with digital display and touch buttons enables precise setting and repeatable cycles. Sterilization range 50°C–134°C with a rated working temperature of 134°C ensures controlled steam penetration for standard sterilization protocols.

Safety & Reliability
Built with a stainless-steel chamber and body, the autoclave includes a self-expanding sealing structure and integrated safety interlock to secure chamber closure and pressure stability. Rated working pressure: 0.22 MPa. Protective systems include over-temperature protection, automatic over-pressure discharge, low-water level protection and anti-dry-burning. Automatic cooling air circulation and automatic steam exhaust simplify post-cycle handling; buzzer notification and auto-stop indicate cycle completion.

Key highlights

• Large 150 L stainless-steel chamber for high-volume batches
• Microcomputer automatic control with digital display and touch buttons for precise parameter setting
• Sterilization temperature range 50°C–134°C; rated working temperature 134°C
• Rated working pressure 0.22 MPa
• Multi-level safety protections: over-temperature, over-pressure discharge, low-water level, anti-dry-burning
• Automatic cooling air circulation and automatic steam exhaust
• Auto-stop and buzzer reminder at cycle end

Features

• 150 L chamber capacity
• Vertical floor-standing configuration for compact footprint and convenient loading
• Stainless-steel chamber and body for corrosion resistance and durability
• Digital display with touch-button operation for easy monitoring and adjustment
• Adjustable sterilization time: 4–120 minutes
• Self-expanding sealing structure for secure chamber closure
• Integrated safety interlock device
• Pressure monitoring and controlled steam management during cycles
• Automatic cooling air circulation to improve post-cycle handling
• Automatic steam exhaust for controlled depressurization
• Auto-stop and buzzer reminder after cycle completion
• Standard test interface for inspection and maintenance
• Microcomputer automatic control for stable, repeatable sterilization performance

Applications

• Hospitals & Healthcare Facilities
  Sterilization of compatible surgical instruments, stainless-steel tools, textiles, dressings, glassware and reusable medical supplies
• Laboratories
  Sterilization of laboratory glassware, instruments, culture media, containers and other heat- and moisture-resistant items
• Pharmaceutical & QC Labs
  Routine sterilization of compatible equipment and materials used in pharmaceutical processing and quality control
• Research Institutes & Universities
  Sterilization of laboratory instruments, culture-related materials and reusable equipment for research and teaching
• Diagnostic Laboratories
  Controlled steam sterilization of laboratory instruments, glassware and reusable materials
• High-Volume Batch Sterilization
  Designed for facilities requiring efficient processing of larger batches with controlled temperature, pressure and time

Technical specifications

• Capacity: 150 L
• Sterilization temperature range: 50°C–134°C
• Rated working temperature: 134°C
• Rated working pressure: 0.22 MPa
• Sterilization time range: 4–120 min
• Chamber dimensions (internal): Ø500 × 780 mm
• Basket dimensions: Ø470 × 720 mm
• Voltage: AC 220 V, 50 Hz
• Power: 6.0 kW
• Outer dimensions: 605 × 649 × 1210 mm
• Packing size (L × W × H): 750 × 700 × 1370 mm
• Gross weight: 123 kg
• Net weight: 90 kg
