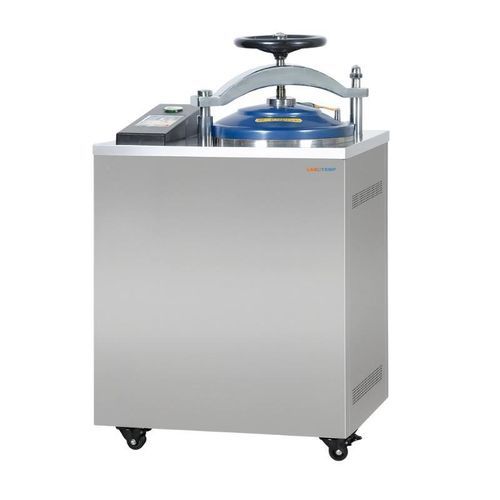

Laboratory sterilizer VEA-11

for sterilization servicesmicrobiologyfor the pharmaceutical industry

Product overview
Labotemp Vertical Autoclave VEA-11 is a fully automatic autoclave designed for reliable steam sterilization of laboratory instruments, surgical tools, culture media, glassware, dressings, and medical supplies. It features a 50 L stainless steel chamber, working temperature up to 134°C, 0.22 MPa rated working pressure, and an adjustable sterilization temperature range of 116°C to 134°C. The unit is equipped with a microcomputer-controlled touch-screen interface, three-stage pre-vacuum system, automatic cold air discharge, quick-opening handwheel door and a self-expanding sealing system. Integrated steam generator, automatic water filling and automatic steam exhaust simplify operation while ensuring consistent sterilization performance and durability.

Key operational details
Designed for continuous laboratory and clinical use, the autoclave provides a programmable sterilization timer (4–120 minutes) for flexible processing. Multiple protection systems include over-temperature protection, over-pressure relief, low-water level protection, anti-dry heating, safety door interlock, and automatic shutdown with audible alarm to ensure operator safety. The unit is constructed from stainless steel and supplied with stainless steel buckets and baskets for long service life and energy-efficient operation.

Why choose VEA-11

• Efficient pre-vacuum sterilization with three-stage pre-vacuum to improve steam penetration and sterilization efficiency
• Intelligent automatic control via a touch-screen microcomputer system with programmable sterilization cycles
• Comprehensive safety protections including door interlock, over-pressure relief, low-water and over-temperature protections

Features

• 3× Pre-Vacuum
• Microprocessor control with touch-screen operation
• Adjustable sterilization temperature (116°C–134°C)
• Programmable sterilization timer (4–120 minutes)
• Automatic water filling and automatic steam exhaust system
• Stainless steel chamber, basket, and bucket
• Handwheel quick-opening door with self-expanding seal
• Multiple safety protections for pressure, temperature, and low water level
• Automatic shutdown with audible cycle completion alarm

Applications

• Steam sterilization of laboratory glassware, surgical instruments, culture media, dressings, liquids and reusable medical supplies
• Suitable for hospitals, clinical laboratories, microbiology and research laboratories, pharmaceutical production and quality control, biotechnology facilities, academic institutions and diagnostic laboratories requiring validated high-pressure sterilization with programmable process control

Caractéristiques / Spécifications techniques

• Capacity: 50 L
• Rated Working Temperature: 134°C
• Sterilization Temperature Range: 116°C – 134°C
• Power Supply: AC 220V, 50/60Hz
• Design Pressure: 0.25 MPa
• Design Temperature: 139°C
• Rated Working Pressure: 0.22 MPa
• Power: 3.5 kW
• Sterilization Time Setting Range: 4 – 120 minutes
• Chamber Dimensions (Ø × H): Ø400 × 525 mm
• Bucket Dimensions (Ø × H): Ø380 × 430 mm
• Basket Dimensions (Ø × H): Ø360 × 280 × 1
• External Dimensions (L × W × H): 630 × 500 × 1180 mm
• Packing Dimensions (L × W × H): 800 × 600 × 1230 mm
• Net Weight: 118 kg
• Gross Weight: 138 kg
