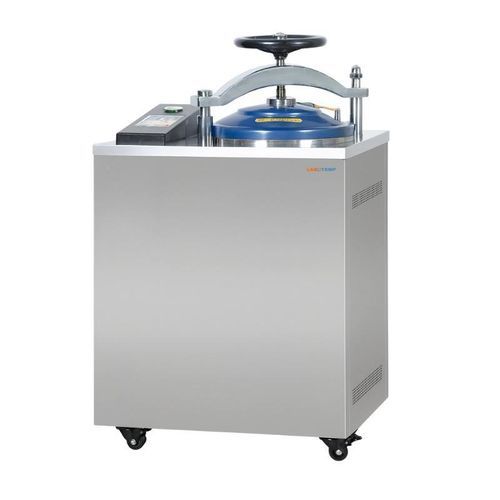

Medical autoclave VEA-05

dentallaboratoryfor research

Product overview
Labotemp Vertical Autoclave VEA-05 is a 75 L vertical steam sterilizer designed for routine steam sterilization of heat- and moisture-resistant instruments, glassware, dressings and culture media. It offers a sterilization temperature range of 116–134°C, rated working temperature 134°C and rated working pressure 0.22 MPa. The autoclave supports repeated validated cycles in clinical and laboratory settings and includes automatic water intake and an integrated evaporator for steam generation.

Control, safety and operation
The unit is microcomputer-controlled with an LCD touchscreen for parameter setting and monitoring. It provides programmable sterilization and drying cycles, automatic cold-air discharge and steam evacuation after sterilization, and a three-time pulsing vacuum system for effective air removal. Safety features include over-temperature, over-pressure, low-water-level and anti-dry-heating protection, a safety interlock preventing chamber opening under pressure, audible/visual alarms and an emergency manual door release.

Why choose Labotemp VEA-05?

• Practical 75 L chamber capacity for routine laboratory and clinical loads.
• Pre-vacuum cycles and pulsed vacuum for improved steam penetration in wrapped, hollow or porous loads.
• Integrated cycle recording (built-in printer) and standard test interface to support traceability and validation.

Features

• Automatic cold-air discharge
• Three-time pulsing vacuum for improved air removal
• LCD touchscreen for operation and parameter setting
• Microcomputer automatic control with adjustable sterilization parameters
• Built-in drying function with adjustable drying time
• Automatic water intake
• Stainless steel inner chamber (316 grade)
• Self-expanding sealing ring
• Safety interlock to prevent opening under pressure
• Protections: over-temperature, over-pressure, low water level, anti-dry heating
• Built-in evaporator for steam generation
• Automatic discharge of cold air and steam after cycle
• Buzzer reminder and automatic shutdown at cycle completion
• Built-in printer for cycle records
• Standard test interface for sterilization verification
• Five validated sterilization programs
• Fractionated pre-vacuum and post-vacuum drying
• Audible and visual fault alarms
• No external air compressor required

Applications

• Laboratory instruments
  Sterilization of heat-resistant laboratory tools and glassware.
• Culture media
  Validated cycles for prepared microbiological media.
• Surgical and clinical instruments
  Suitable for sterilizing reusable surgical instruments, dressings and hollow or porous devices when deep steam penetration is required.
• Research and healthcare facilities
  Routine steam sterilization for medical, dental, hospital and research laboratories.

Standard accessories

• Internal stainless steel basket

Optional accessories

• Air compressor
• Water treatment machine

Technical specifications

• Volume: 75 L
• Power: 4.5 kW
• Voltage: AC 110 V 60 Hz or AC 220 V 50 Hz
• Design pressure: -0.1 ~ 0.25 MPa
• Design temperature: 139°C
• Rated working pressure: 0.22 MPa
• Rated working temperature: 134°C
• Sterilization temperature range: 116 ~ 134°C
• Sterilization time range: 4 ~ 120 min
• Drying time range: 0 ~ 240 min
• Vacuum system: Three-time pulsing vacuum
• Vacuum function: Fractionated pre-vacuum and post-vacuum drying
• Sterilization programs: 5 validated programs
• Control system: Microcomputer automatic control
• Display: LCD touch screen
• Sterilization parameter setting: Adjustable
• Water intake: Automatic
• Drying function: Built-in
• Cycle completion: Buzzer reminder with automatic shutdown
• Printer: Built-in printer
• Cycle data recording: Time, temperature, pressure and cycle result
• Inner chamber material: 316 grade stainless steel
• Safety interlock: Prevents chamber opening while pressure is present
• Safety protection: Over-temperature, over-pressure, low-water-level and anti-dry-heating protection
• Alarm system: Audible and visual alarms
• Emergency release: Manual emergency door release
• Air discharge: Automatic discharge of cold air and steam
• Standard test interface: Included
• Air compressor requirement: Not required
• Chamber size: φ400 × 665 mm
• Bucket dimension: φ375 × 265 × 2 mm
• Optional basket dimension: φ370 × 250 × 2 mm
• Outer dimension (L × W × H): 540 × 761 × 1180 mm
• Packing size (L × W × H): 840 × 610 × 1310 mm
• Gross / Net weight: 150 / 121 kg
