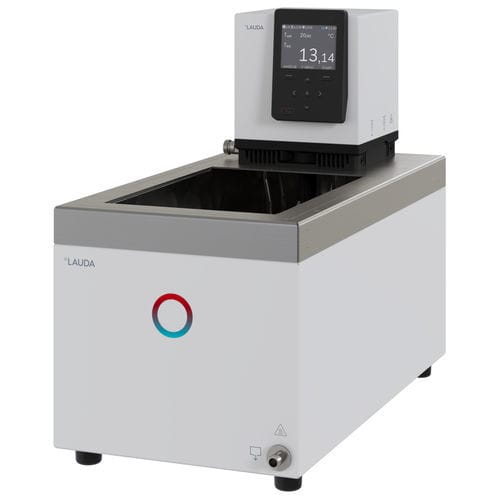

Heating thermostat Universa U 16 P

laboratorybenchtopdigital

Product overview
The Universa U 16 P is a bath circulation thermostat designed for precise temperature control of liquid baths in industrial and laboratory processes. It supports bath volumes around 11.5–17 L and offers advanced control, connectivity and safety functions suited to continuous operation.

Features

• Bath circulation thermostat with advanced electronics ensuring precise temperature control
• Dedicated Tmax button for easy access to overtemperature protection during commissioning
• Adaptive bath edge ventilation (patent pending) to prevent icing and condensation, stop water ingress and block vapours to protect electronics
• Flexible networking with integrated Ethernet and USB interfaces; up to eleven optional interface modules for additional communication requirements
• Integrated Wi‑Fi communication (device may only be imported and used in certified countries and regions: United States of America, Canada, EU including the UK and Switzerland, and India)
• Modular design with interchangeable control head and heating/cooling base for future adaptability
• Efficient vario pump with six adjustable performance levels; flexible flow distribution for internal and external circulation
• Integrated programmer, calibration options and weekly scheduler for precise process control
• 3.5-inch colour TFT display with process graph, menu navigation in six languages and intuitive cursor/soft-key operation
• Front-facing switch on the control head for pump output adjustment during operation
• Integrated web server for secure remote control and monitoring via LAUDA Command app or browser; PKI and 2-factor authentication; connection to LAUDA.LIVE for cloud-based data analysis and remote maintenance
• Comprehensive safety concept: reliable low-level protection with float technology; adjustable overtemperature protection with acoustic alarm; intelligent management of temperature control media

Working range

• Min. working temperature: 40 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.01 ± K

Technical data (according to DIN 12876)

• Working temperature range: 40 ... 200 °C
• Working temperature range with water cooling: 20 ... 200 °C
• Operating temperature range: -30 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.01 ± K
• Current consumption: 12 A
• Bath opening (W x D): 200 x 300 mm
• Min. / max. bath volume: 11.5 / 17.0 L
• Max. discharge pressure: 0.6 bar
• Max. pump flow: 22 L/min
• Inlet / outlet connection thread (outside): M16 x 1
• Dimensions (W x D x H): 280 x 550 x 476 mm
• Weight: 18 kg
• Power supply: 200-240 V, 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Model / commercial denomination: Universa U 16 P
• Part no.: L003893
