Laboratory thermostat Universa U 15 TE

modularbenchtopdigital

Product description

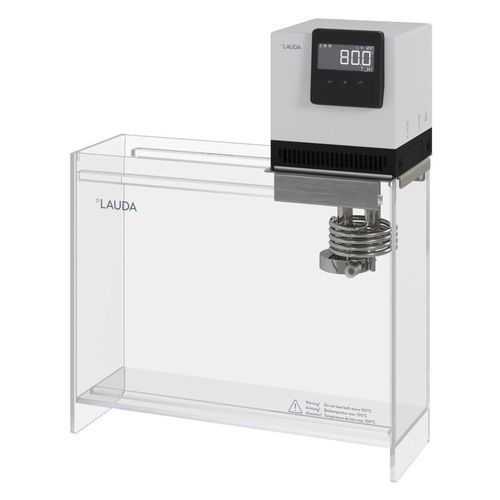

Universa U 15 TE is a bath circulation thermostat with a transparent polycarbonate bath, designed for standard temperature control tasks up to 100 °C. The unit can be upgraded with a pump connection kit and a bath cover; its modular design allows an interchangeable control head and heating/cooling base for flexible adaptation.

Features

• Circulating bath thermostat for temperature control up to 100 °C with intuitive 3‑button operation and bright VA LC two‑line display.
• Reliable circulation pump with flow reduction for adjusted volume flow and constant pressure (max. 15 L/min, max. discharge pressure 0.2 bar).
• Integrated connectivity: Ethernet and USB interfaces plus WLAN (use only in certified countries/regions: USA, Canada, EU incl. UK and Switzerland, India).
• Integrated timer with countdown for time‑controlled processes.
• Remote control and monitoring via integrated web server, LAUDA Command app or browser; secured by PKI and 2‑factor authentication; optional LAUDA.LIVE cloud connection for global data analysis and remote maintenance.
• Safety features: low‑level and overheat protection for operation with non‑flammable liquids, audible and visual alarms.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: 35 ... 100 °C
Working temperature range with water cooling: 20 ... 100 °C
Operating temperature range: -30 ... 100 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Max. power consumption: 2.4 kW
Current consumption: 10 A
Bath opening (WxD): 263 x 130 mm
Min. / max. bath volume: 13.2 / 15.0 L
Max. discharge pressure: 0.2 bar
Max. pump flow: 15 L/min
Dimensions (WxDxH): 432 x 189 x 529 mm
Weight: 16 kg
Power supply: 200-240 V, 50/60 Hz
Power plug: Power cord with angled Schuko plug (CEE7/7)
Order number: L004702

Technical specifications

• Model: Universa U 15 TE
• Working temperature range: 35–100 °C (20–100 °C with water cooling)
• Temperature stability: 0.05 ± K
• Bath volume: min 13.2 L / max 15.0 L
• Bath opening (WxD): 263 x 130 mm
• Pump: circulation pump, max flow 15 L/min, max discharge pressure 0.2 bar
• Max. power consumption: 2.4 kW / Current: 10 A
• Dimensions (WxDxH): 432 x 189 x 529 mm / Weight: 16 kg
• Connectivity: integrated Ethernet, USB, Wi‑Fi; web server for remote control; LAUDA Command app and LAUDA.LIVE compatible
• Safety: low‑level and overheating protection, audible and visual alarms
