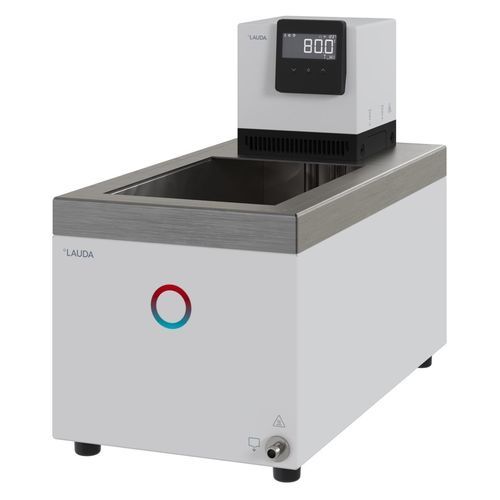

Water bath thermostat Universa U 16 E

modulardigitalelectronic

Product description
The Universa heating thermostats (Universa U 16 E) are modular bath circulation thermostats with bath volumes from 4 to 40 L and heating powers from 2 kW to 3.6 kW, offering flexible configuration and connectivity for industrial temperature control tasks.

Features

• Bath circulation thermostat for standard temperature control tasks up to 100 °C — reliable and intuitive to use.
• Reliable circulation pump with flow reduction for adjusted volume flow and constant pressure.
• Standard integrated Ethernet and USB interfaces for reliable data communication.
• Integrated Wi‑Fi communication (use/import only in certified countries/regions: United States, Canada, EU incl. UK and Switzerland, and India).
• Future‑proof modularity: interchangeable control head and heating/cooling base for flexible adaptation.
• Integrated timer with countdown function for time‑controlled temperature processes.
• Wireless communication: integrated WLAN enables connection with PC, tablet and smartphone.
• Bright VA LC two‑line display with intuitive 3‑button operation.
• Intelligent remote control and monitoring: integrated web server allows remote control via LAUDA Command app or browser; secured by PKI and 2‑factor authentication; connection to LAUDA.LIVE enables cloud‑based analysis and remote maintenance.
• Proven safety features: low‑level and overheating protection for operation with non‑flammable liquids, audible and visual alarms.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical specifications

• Working temperature range (standard): 35 ... 100 °C
• Working temperature range with water cooling: 20 ... 100 °C
• Operating temperature range: -30 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Max. power consumption: 2.4 kW
• Current consumption: 10 A
• Bath opening (WxD): 200 x 300 mm
• Min. / max. bath volume (example variant): 12.7 / 17.1 L
• Bath volumes (Universa series): 4 ... 40 L
• Max. discharge pressure: 0.2 bar
• Max. pump flow rate: 15 L/min
• Dimensions (WxDxH): 280 x 550 x 450 mm
• Weight: 13 kg
• Power supply (example variant): 200-240 V, 50/60 Hz
• Power plug (example variant): Power cord with angled plug (CEE7/7)

Notes
The Universa product line is modular: the family covers several bath volumes and heating powers; some values above refer to the shown variant while others are general for the series.
