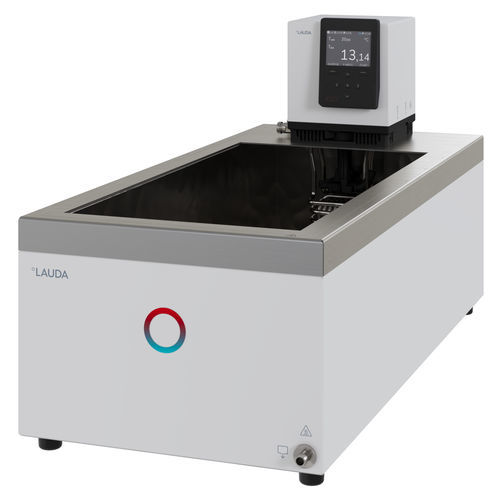

Laboratory thermostat Universa U 40 P

processbenchtopdigital

Description
The Universa bath circulation thermostat Universa U 40 P provides precise temperature control for laboratory and industrial thermostating applications. It covers bath volumes of approx. 27.5–41.0 L and a wide working temperature range, with integrated connectivity and modular hardware for flexible deployment.

Key features

• Bath circulation thermostat with advanced electronics for high control precision
• Dedicated Tmax button for direct access to overtemperature protection during commissioning
• Adaptive bath edge ventilation (patent pending) to prevent icing/condensation, stop water ingress and protect electronics
• Flexible networking: integrated Ethernet and USB; eleven optional interface modules available
• Integrated Wi‑Fi (export/use subject to certification of target countries/regions)
• Modular design: interchangeable control head and heating/cooling base for easy adaptation
• Vario pump with six adjustable performance levels (max. 22 L/min) for optimized internal/external circulation
• Programmer, calibration options and weekly scheduler for precise process control
• 3.5" colour TFT display with progression graph, six-language menu and soft-key operation
• Front pump switch for on-the-fly pump output adjustment
• Remote control and monitoring: integrated web server secured by PKI and 2‑factor authentication; LAUDA.LIVE compatibility for cloud analysis and maintenance
• Comprehensive safety: float low-level protection, adjustable overtemperature protection with acoustic alarm, smart media management with automatic limit adjustment

Working range

• Min. working temperature: 40 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.01 ± K

Technical data (according to DIN 12876)
Working temperature range: 40 ... 200 °C
Working temperature range with water cooling: 20 ... 200 °C
Operating temperature range: -30 ... 200 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.01 ± K
Max. power consumption: 2.9 kW
Current consumption: 12 A
Bath opening (WxD): 300 x 600 mm
Min. / max. bath volume: 27.5 / 41.0 L
Max. discharge pressure: 0.6 bar
Max. pump flow (pressure): 22 L/min
Dimensions (WxDxH): 380 x 850 x 478 mm
Weight: 29 kg
Power supply: 200-240 V, 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Technical characteristics / specifications

• Model: Universa U 40 P
• Working temperature range: 40 ... 200 °C (20 ... 200 °C with water cooling)
• Temperature stability: 0.01 ± K
• Bath volume (this variant): approx. 27.5 – 41.0 L
• Heating output / Max. power consumption: up to 2.9 kW
• Pump: Vario pump with six performance levels (max. 22 L/min)
• Safety features: float low-level protection, adjustable overtemperature protection with acoustic alarm
• Connectivity: Ethernet, USB standard; integrated Wi‑Fi and optional interface modules; integrated web server and LAUDA.LIVE connectivity
• Display: 3.5" colour TFT with progression graph and multi-language menu
