Heating thermostat UNIVERSA U 6 TE

laboratorybenchtopdigital

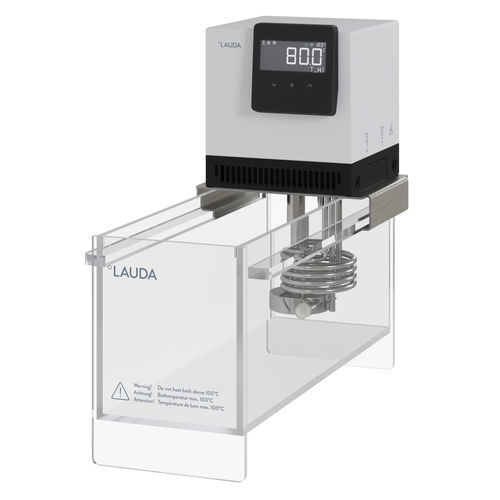

The Universa U 6 TE is a bath circulation thermostat with a transparent bath designed for precise temperature control in laboratory and industrial applications. It supports external pump connection and a bath cover for extended functionality.

Key features

• Circulation thermostat for standard temperature control tasks up to 100 °C with intuitive 3-button operation and bright two-line VA LC display.
• Integrated circulation pump with flow reduction for adjustable volume flow and constant pressure.
• Standard Ethernet and USB interfaces for reliable data communication; integrated web server for local remote control.
• Integrated Wi‑Fi (use restricted to certified countries/regions: USA, Canada, EU including UK and CH, and India).
• Modular design with interchangeable control head and heating/cooling base for future upgrades.
• Integrated timer with countdown for time-controlled temperature processes.
• Remote control and monitoring via LAUDA Command app or browser (PKI and 2‑factor authentication), connection to LAUDA.LIVE for cloud-based analysis and remote maintenance.
• Safety functions: low-level and overheating protection for operation with non-flammable liquids; audible and visual alarms.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical specifications

• Model: Universa U 6 TE
• Product reference: L004701
• Working temperature range: 35 ... 100 °C
• Working temperature range with water cooling: 20 ... 100 °C
• Operating temperature range: -30 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Max. power consumption: 2.4 kW
• Current consumption: 10 A
• Bath opening (W x D): 130 x 270 mm
• Bath volume min. / max.: 5.2 / 8.0 L
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Dimensions (W x D x H): 189 x 435 x 379 mm
• Weight: 14 kg
• Power supply: 200–240 V, 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Accessories & documentation

• Optional pump connection kit and bath cover, compatible cooling coil kits (e.g., Universa ECO)
• Datasheet and multilingual product documentation available (PDF)
• Compatible with LAUDA Command app and LAUDA.LIVE for monitoring and maintenance
