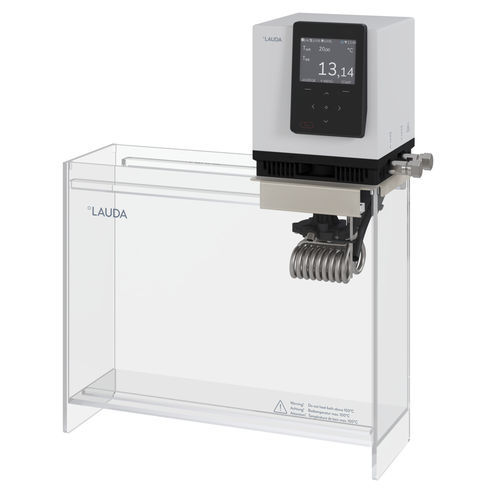

Laboratory thermostat Universa U 15 TP

modularbenchtoptabletop

Description
All Universa bath thermostats with transparent bath can be fitted with a pump connection kit and a bath cover. Models in the PRO performance class are supplied with a cooling coil as standard.

Features

• Bath circulation thermostat with advanced electronics for precise control accuracy.
• Dedicated Tmax button for direct access to overtemperature protection during commissioning.
• Adaptive bath edge ventilation (patent pending) to prevent icing and condensation, stop water ingress and block vapours to protect electronics.
• Flexible networking: integrated Ethernet and USB as standard plus eleven optional interface modules for versatile communication.
• Integrated Wi‑Fi communication (import/use only in certified countries/regions: USA, Canada, EU incl. UK & Switzerland, India).
• Modular design: interchangeable control head and heating/cooling base for future adaptation.
• Efficient vario pump with six adjustable performance levels for internal or external circulation (max. flow 22 L/min).
• Includes programmer, calibration options and weekly scheduler for process control.
• 3.5-inch colour TFT with progression graph, six-language menu and intuitive cursor/soft key operation.
• Front switch on the control head for pump output adjustment during operation.
• Remote control and monitoring: integrated web server, secured by PKI and 2‑factor authentication; LAUDA.LIVE compatibility for cloud data analysis and remote maintenance.
• Comprehensive safety concept: float low‑level protection, adjustable overtemperature protection with acoustic alarm and smart media management.

Working range

• Min. working temperature: 30 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.01 ± K

Technical data (according to DIN 12876)
Working temperature range: 30 ... 100 °C
Working temperature range with water cooling: 20 ... 100 °C
Operating temperature range: -30 ... 100 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.01 ± K
Max. power consumption: 2.9 kW
Current consumption: 12 A
Bath opening (WxD): 263 x 130 mm
Min. / max. bath volume: 12.9 / 15.0 L
Max. discharge pressure: 0.6 bar
Max. pump flow: 22 L/min
Dimensions (WxDxH): 432 x 191 x 555 mm
Weight: 17 kg
Power supply: 200-240 V, 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Characteristics / technical specifications

• Device type: Bath circulation heating thermostat with transparent bath
• Model: Universa U 15 TP
• Control / display: 3.5" colour TFT, progression graph, multi‑language menu
• Pump: Vario pump, 6 performance levels, internal/external circulation; max. 22 L/min
• Safety: Float low‑level protection, adjustable overtemperature protection with acoustic alarm
• Connectivity: Ethernet, USB standard; integrated Wi‑Fi (regional restrictions); optional interface modules; integrated web server and LAUDA.LIVE compatibility
• Modularity: Interchangeable control head and heating/cooling base
• Bath dimensions / volume: 263 x 130 mm; 12.9–15.0 L
• Electrical: 200–240 V, 50/60 Hz; max. 2.9 kW; 12 A
• Physical dimensions & weight: 432 x 191 x 555 mm; 17 kg
