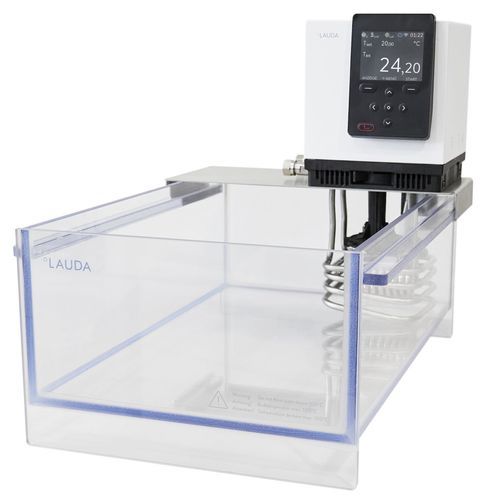

Heating thermostat Universa U 20 TP

laboratoryfor water bathsbenchtop

Product description
Bath circulation thermostat Universa U 20 TP with transparent bath. Upgradeable with pump connection kit and bath cover. PRO performance class models include a cooling coil as standard.

Key features

• Bath circulation thermostat with advanced electronics for precise temperature control
• Tmax commissioning button for easy access to overtemperature protection
• Adaptive bath-edge ventilation (patent pending) to prevent icing and condensation and to protect electronics
• Modular design: interchangeable control head and heating/cooling base for flexible adaptation
• Integrated Ethernet, USB and certified Wi‑Fi; eleven optional interface modules for flexible networking
• Integrated web server, LAUDA Command app support and LAUDA.LIVE connectivity for remote monitoring and cloud data analysis (PKI and 2‑factor authentication)
• Vario pump with six adjustable performance levels; max flow 22 L/min; max discharge pressure 0.6 bar
• 3.5-inch colour TFT display with progression graph, multi-language menu and soft-key operation
• Safety features: float low-level protection and adjustable overtemperature protection with acoustic alarm
• Programmer, calibration options and weekly scheduler for process control

Working range

• Min. working temperature: 30 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.01 ± K

Technical data

• Working temperature range: 30 ... 100 °C (20 ... 100 °C with water cooling)
• Operating temperature range: -30 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Max. power consumption: 2.9 kW; Current: 12 A; Power supply: 200–240 V, 50/60 Hz
• Bath opening (W x D): 300 x 343 mm; Bath volume: 13.0–19.0 L
• Max. pump flow: 22 L/min; Max. discharge pressure: 0.6 bar
• Dimensions (W x D x H): 363 x 513 x 407 mm; Weight: 19 kg
• Power plug: Power cord with angled plug (CEE7/7)
