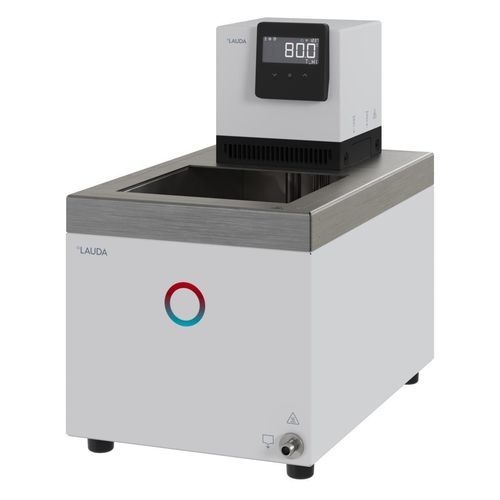

Heating thermostat Universa U 12 E

laboratorybenchtopdigital

Product description
The Universa bath circulation thermostats cover bath volumes from 4 to 40 L and heating outputs from 2 kW to 3.6 kW, providing flexible temperature control for laboratory and industrial applications.

Features

• Bath circulation thermostat for standard temperature control tasks up to 100 °C — reliable and intuitive to operate.
• Circulation pump with flow reduction for adapted volume flow and constant pressure (max. discharge pressure 0.2 bar).
• Standard integrated Ethernet and USB interfaces for reliable data communication; integrated WLAN for wireless connection to PC, tablet and smartphone.
• Integrated Wi‑Fi may only be imported and used in certified countries and regions: United States of America, Canada, EU (including the UK and Switzerland) and India.
• Modular design with interchangeable control head and heating/cooling base for flexible configuration.
• Integrated timer with countdown for time-controlled processes and a bright VA LC two-line display with 3-button operation.
• Integrated web server for secure remote control (PKI, 2‑factor authentication); supports LAUDA Command and LAUDA.LIVE for cloud-based data analysis and remote maintenance.
• Safety features: low-level protection, overtemperature protection and audible/visual alarms for use with non-flammable liquids.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical specifications

• Model: Universa U 12 E
• Bath volume (min./max.): 10.8 / 14.3 L
• Heating output: 2 – 3.6 kW (depending on variant)
• Working temperature range: 35 ... 100 °C (20 ... 100 °C with water cooling)
• Operating temperature range: -30 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Max. power consumption: 2.4 kW / Current: 10 A
• Max. pump flow: 15 L/min
• Bath opening (WxD): 200 x 200 mm
• Dimensions (WxDxH): 280 x 450 x 450 mm
• Weight: 12 kg
• Power supply: 200-240 V, 50/60 Hz — Power cord with angled plug (CEE7/7)
