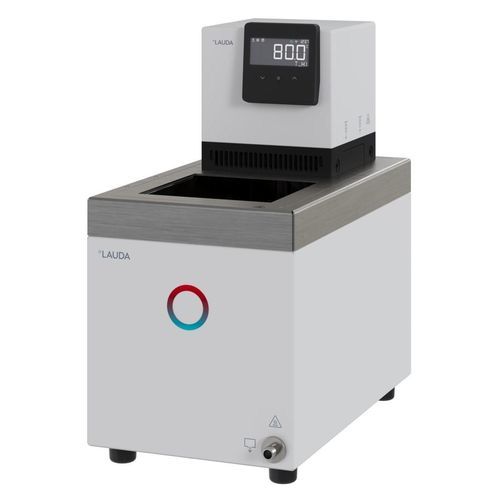

Heating thermostat UNIVERSA U 8 E

laboratorymodularbenchtop

Product description
The Universa U 8 E bath circulation thermostat covers bath volumes from 6.6 to 8.8 L and is available in heating variants up to 3.6 kW, offering flexible temperature control for laboratory and industrial tempering tasks.

Features

• Bath circulation thermostat for standard temperature control tasks up to 100 °C with intuitive 3-button operation and two-line VA LC display.
• Reliable circulation pump with flow reduction to adjust volumetric flow and maintain constant pressure.
• Integrated Ethernet and USB interfaces for stable on-site data communication.
• Integrated Wi‑Fi communication (device import/use limited to certified countries and regions).
• Modular design with interchangeable control head and heating/cooling base to adapt to changing process requirements.
• Integrated timer with countdown for time-controlled temperature processes.
• Wireless connectivity enabling connection to PC, tablet and smartphone for local monitoring.
• Integrated web server for remote control within the company network, secured by PKI and two-factor authentication; optional connection to LAUDA.LIVE for cloud-based data analysis and remote maintenance.
• Safety functions: low-level and overtemperature protection for operation with non-flammable liquids, with audible and visual alarms.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical specifications

• Product reference: L003968
• Working temperature range: 35 ... 100 °C
• Working temperature range with water cooling: 20 ... 100 °C
• Operating temperature range: -30 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Nominal heating power: up to 3.6 kW (variant dependent)
• Max. power consumption: 2.4 kW
• Current consumption: 10 A
• Bath opening (WxD): 150 x 150 mm
• Min. / max. bath volume: 6.6 / 8.8 L
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Dimensions (WxDxH): 230 x 400 x 450 mm
• Weight: 10 kg
• Power supply: 200-240 V, 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Connectivity: Ethernet, USB, integrated Wi‑Fi
• Display and control: VA LC two-line display, 3-button operation
