Heating thermostat ALPHA A 24

laboratorybenchtopdigital

Product description

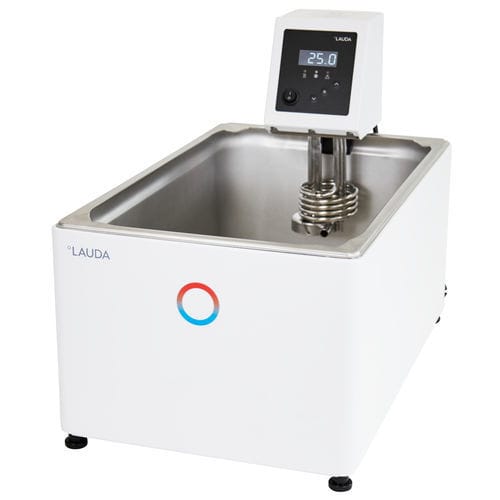

Thermostatic bath for heating liquids, model Alpha A 24. Provides controlled heating from 25 to 100 °C with a bath volume of 18–25 L and a deep-drawn stainless steel bath. Cooling coil, pump circulation set and bath cover are available as accessories.

Features

• Simple operation with 3-key user interface
• Fully electronic continuous controller with 1-line LED display
• Circulating pump with flow reduction
• Low-level and overtemperature protection for use with non-flammable liquids
• Acoustic and visual alarm
• Optional cooling coil and pump circulation set

Working range
Min. working temperature: 25 °C
Max. working temperature: 100 °C
Temperature stability: 0.05 ± K

Technical features (summary)

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 7 A
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Bath volume (min/max): 18.0 / 25.0 L
• Dimensions (WxDxH): 332 x 535 x 420 mm
• Weight: 11 kg
• Power supply: 220 V; 60 Hz / 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)

Accessories

• Bath cover (Alpha)
• Cooling coil set (Alpha)
• Pump connection set

Downloads
Data sheet Alpha A 24 (PDF available)
