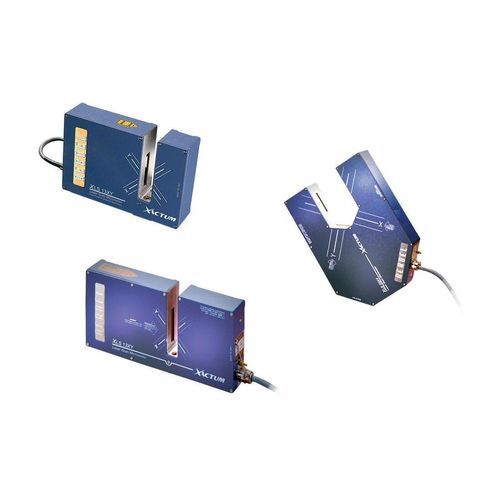

Control measuring meter XLS series

diametermovementfor sensors

Product overview
The XLS (eXactum Laser Scan Micrometer) series are laser gauges for high-precision dual-axis diameter measurement. Built-in high-performance electronics allow XLS units to operate as stand-alone intelligent diameter sensors or to be integrated into dedicated laser measuring and control systems for on-line process control.

Functional features
XLS micrometers connect directly to PC, PLC or NC via Ethernet, RS232 or RS485. Any controller or software with these interfaces can receive fast, accurate diameter readings for data logging, process control or integration into customer applications. This connectivity makes XLS suitable for OEMs, system integrators and large-scale installations.

Benefits

• Non-contact measurement: suitable for moving, hot or soft parts.
• Wide measuring range: measures different part sizes without pre-setting.
• Insensitive to speed and vibration: enables on-line measurement during production.
• Absolute measurement concept: no zeroing required when diameter changes.
• High gauging speed and small beam spot: detects details missed by contact probes or air rings.
• 100% on-line inspection: supports zero-defect manufacturing.
• Ideal for automatic process regulation: reduces material waste and labor.
• Fast and easy gauging: lowers off-line sampling costs.
• Accurate and reproducible results: independent of operator experience.

Versions

• XLS13XY
  Measuring Field: 4x4 mm or 13x13 mm
  Measurable Diameters: from 0.03 to 10 mm
  Repeatability: up to ±0.02 µm
• XLS13XY 1500
  Measuring Field: 4x4 mm or 13x13 mm
  Measurable Diameters: from 0.03 to 10 mm
  Repeatability: up to ±0.2 µm
• XLS150
  Measuring Field: 35x35 mm
  Measurable Diameters: from 0.03 to 10 mm
  Repeatability: up to ±0.15 µm

Technical specifications

• Series: XLS (eXactum Laser Scan Micrometer)
• Measurement principle: non-contact laser scanning micrometry
• Built-in electronics; operable as stand-alone intelligent diameter sensor
• Connectivity: Ethernet, RS232, RS485 (direct connection to PC, PLC, NC)
• Applications: on-line control, OEM integration, system integrators, large-scale applications
• Measurable diameters: 0.03 mm to 10 mm (depending on version)
• Measuring fields (examples): 4x4 mm, 13x13 mm, 35x35 mm
• Repeatability (examples): up to ±0.02 µm; up to ±0.15 µm; up to ±0.2 µm (depending on model)
• Advantages: absolute measuring concept, insensitive to speed and vibration, high gauging speed, small beam spot size
• Typical uses: moving, hot or soft parts; 100% on-line checking; automatic process regulation
