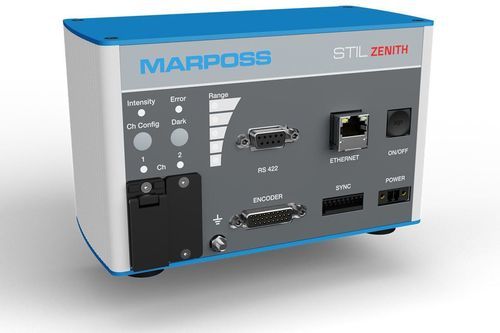

Production controller ZENITH

laboratoryfor medical devicesfor research

Product description
ZENITH is a chromatic confocal controller designed for industrial non-contact distance and thickness measurement. Based on standard Ethernet communication (GigE), it delivers high-resolution metrology when combined with STIL interchangeable optical heads and is engineered for continuous operation in production and laboratory environments. ZENITH supports surfaces of varying reflectivity (transparent to opaque) and provides acquisition rates up to 5000 Hz.

Benefits

• High dynamic range (15-bit) for improved measurement fidelity
• Industrial Ethernet (GigE) connectivity and RS422 digital output
• Up to five encoder inputs for CMM and motion integration
• Master/Slave synchronization and encoder trigger for multi-sensor setups
• Configuration via dedicated software or embedded web configurator
• Compatible with STIL optical heads (CL-MG / OP / ENDO / EVEREST series)
• Stores up to 20 calibration maps to match the selected probe
• Non-contact measurement across metals, glass, plastics, coatings and liquids

Applications

• Automotive glass inspection
• Glass containers and packaging industry
• Electric vehicle battery and component metrology
• Roll-to-roll thickness control for transparent and opaque films
• Electronics and PCB inspection
• Semiconductor wafer measurement
• Medical devices and microfluidics
• Micromechanics, watchmaking and precision engineering
• Aerospace and aviation components
• Robotics and automated production lines

Technical specifications

• Product: CONTROLLER ZENITH
• Technology: Chromatic Confocal
• Light source: White LED
• Channels: 1
• Acquisition frequency: 400 Hz – 5000 Hz
• Calibration memory: up to 20 calibration tables
• Distance measurement: selectable peaks (first/second/third/fourth/last/strongest)
• Thickness measurement: two-peak evaluation
• Advanced features: web configurator, network discovery app, SetExposureTime, EncoderTrigger, Master & Slave mode
• Digital outputs: Ethernet (GigE), RS422
• Synchronization: Trigger in (5–24 Vdc), Trigger out (5 V TTL)
• Other I/O: up to 5 encoder inputs (differential TTL)
• Fiber connector: E2000/APC
• Operating temperature: 5°C – 50°C; Storage: -20°C – 70°C
• Relative humidity: 5% – 80% without condensation
• Protection: IP40
• Power supply: 24 V DC; Consumption: max 25 W / typical 10 W
• Dimensions: 169 × 110 × 88 mm; Weight: 1 kg
• Compliance: electromagnetic compatibility EN 61326-1; environmental and vibration qualifications per CEI/EN 60068 series; degree of protection per CEI EN 60529
