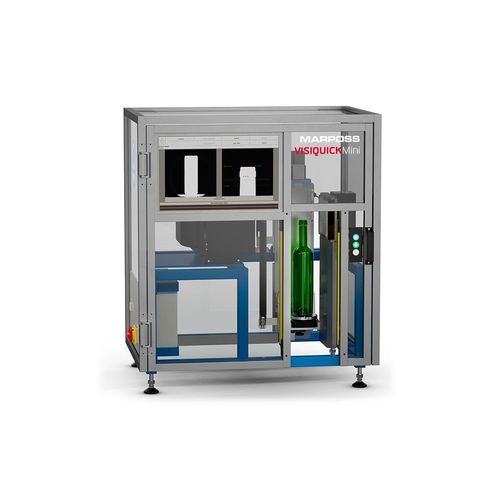

Optical inspection system VISIQUICK-MINI™

semi-automaticbottlecompact

Product description
VisiQuick-mini™ is a compact, flexible, semi-automatic bench using telecentric optics and collimated illumination for accurate dimensional and geometric measurement of glass containers on a sample basis. Suitable for a wide range of container shapes, sizes and colours, it can be installed at the cold-end, in the laboratory or near the production line as an efficient alternative to go/no-go gauges for external dimension control.

Benefits

• Compact: telecentric lens and collimated illuminator reduce footprint and ensure stable measurements
• Flexible: no job change required between different container shapes and sizes
• Cost-effective: replaces multiple mechanical gauges with a single optical system
• Extensive measurement library: ready-to-use algorithms for common glass container parameters

Measurement algorithms / measurable parameters

• Total height
• Verticality
• Bent neck
• Mouth parallelism
• Body parameters (diameters, long/short sides and diagonals for non-round containers, heights at given diameters, etc.)
• Finish parameters on any finish type (diameters, heights, angles, radii, etc.)
• Weight (optional, industrial scale)

Technical specifications

• Overall dimensions: 1.000 x 700 x 1.000 mm
• Power supply: 220 Vac
• Max. measurable height: ≤ 410 mm
• Max. body external diameter / diagonal: ≤ 120 mm
• Max. part weight: ≤ 2 Kg (scale optional)
• Repeatability: ≤ ±0.01 mm (evaluated on the master)
• Optional industrial scale resolution: 0.1 g
• Typical measurement time: 30–60 s
• Industry 4.0 ready; compatibility with production monitoring systems
• Intuitive HMI (user interface)
