Direct leakage flow test leak tester TECNA T3LPQ
for medical devicesfor the pharmaceutical industryfor packaging

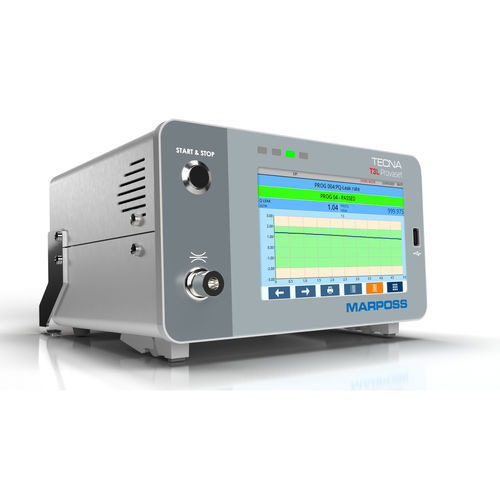

Direct leakage flow test leak tester - TECNA T3LPQ - MARPOSS - for medical devices / for the pharmaceutical industry / for packaging
Direct leakage flow test leak tester - TECNA T3LPQ - MARPOSS - for medical devices / for the pharmaceutical industry / for packaging
Add to favorites
Compare this product
Go to the MARPOSS website for more information

Characteristics

Applications
for medical devices, for the pharmaceutical industry, for packaging, for valves, for bottles, for bags, for filters, for infusion lines, for luer connectors, for medical disposables
Type
electro-pneumatic, direct leakage flow test
Configuration
benchtop, compact
Other characteristics
USB, with touchscreen, color display, Ethernet, Modbus, serial line, electronic regulation, ProfiNet, LAN, direct measurement

Description

Overview
T3LPQ is an electro-pneumatic instrument for leak testing that measures leak flow rate directly with a mass flow sensor. It is designed for fast, repeatable measurements and integration in test benches, production lines or fully automated systems.

Performance
The balanced-pressure method provides measurements independent of the tested volume, improving stability and precision. Electronic pressure regulation and a colour touchscreen with real-time graphical and numeric test views simplify programming and monitoring.

Connectivity
The instrument provides modern interfaces for industrial integration:
  • Digital I/O for PLC connection
  • USB host for storage and PC connection
  • Two serial ports (RS232 / RS485)
  • Ethernet (LAN) with Profinet support for network storage/communication


Benefits
  • Leak measurement with mass flow sensor: range ≥2 cm3/min to 100 cm3/min; resolution up to 0.01 cm3/min
  • Electronic regulation of test pressure from 5 mbar to 1 bar (up to 2 bar depending on conditions)
  • Balanced-pressure method for tests independent of product volume (suitable for volumes ≥10 cm3 to 2 L)
  • 7" full-colour LCD touchscreen with graphic real-time test view
  • Comprehensive interfaces: Digital I/O, USB, RS232/RS485, Ethernet
  • Test data storage on USB pen drive or via LAN/Ethernet/Profinet
  • Control of external devices: printer, barcode/QR-code reader, remote keypad, external valve for volume check, air filters
  • Dedicated Software Manager for data collection, parameter programming and SPC analysis


Technical specifications
  • Model: T3LPQ (direct leak flow measurement)
  • Measurement method: direct mass flow measurement; balanced-pressure method for highest stability
  • Leak measurement range: ≥2 cm3/min to 100 cm3/min
  • Resolution: up to 0.01 cm3/min
  • Test pressure regulation: electronic, 5 mbar to 1 bar (possible up to 2 bar depending on test conditions)
  • Supported test volume: from ≥10 cm3 to 2 liters (balanced-pressure method)
  • Display: 7" full-colour LCD touchscreen with graphic and numeric real-time view
  • Interfaces: Digital I/O (PLC), USB host, RS232/RS485, Ethernet (LAN/Profinet)
  • Data storage: USB pen drive or network storage via LAN/Ethernet/Profinet
  • External device control: printer, barcode/QR reader, remote keypad, external valve for volume check
  • Software: dedicated Software Manager for data collection, configuration and SPC analysis
