Overview

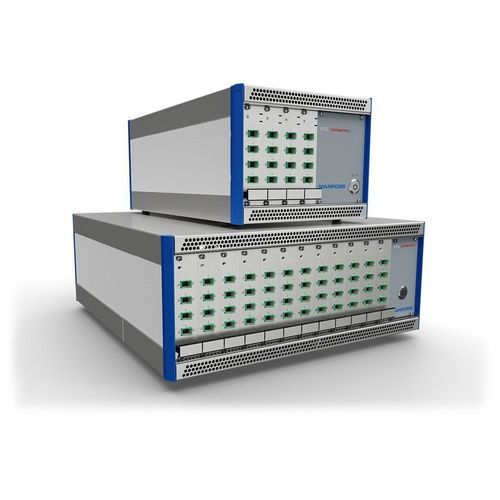

LightMaster is a modular chromatic confocal multi-channel controller for STIL sensor heads. Available in two versions (LIGHTMASTER-S and LIGHTMASTER-F), it supports from 12 to 48 simultaneous measurement channels via Lightslot modules. The unit is a 19-inch 3U rack with Ethernet (GigE) digital I/O for PC or PLC integration.

Key benefits

• Chromatic confocal measurement of reflective materials (metal, glass, plastics, coatings, liquids)
• Non-contact sensing for applications requiring no physical contact with the target
• Universal compatibility with interchangeable STIL optical heads (CL-MG, OP, ENDO, EVEREST, etc.)
• Simultaneous synchronization of up to 48 channels for parallel inspection
• SDK and protocol commands provided for system integration
• Encoder-synchronized acquisition for dynamic measurements
• Ethernet (GigE) digital output for high-speed data transfer

Technical specifications

• Product name: LightMaster (multi-channel chromatic confocal controller)
• Versions: LIGHTMASTER-S (200–750 Hz) and LIGHTMASTER-F (up to 2000 Hz)
• Order codes: O8ST08M0001 (S), O8ST08M0002 (F)
• Channels: from 12 to 48 simultaneous (12 Lightslot modules × 4 channels each)
• Light source: White LED
• Fiber connection: E2000/APC
• Distance modes: first/second/third/fourth/last/strongest peak
• Thickness: detection of 2 peaks among 5
• Digital I/O: Ethernet (GigE); trigger in/out; encoder input for synchronized acquisition
• Calibration memory: up to 48 different optical sensor heads (nominal or half nominal range depending on version)
• Operating temperature: 5°C–50°C; storage: -20°C–70°C
• Relative humidity: 5%–80% RH without condensation
• Protection: IP20
• Power supply: 100–240V AC; consumption: max 120W / typical 70W
• Dimensions: 449 mm × 184 mm × 502 mm
• Compliance: EN 61010-1; EN 61326-1

Applications

• Automotive glass inspection
• Glass containers and packaging quality control
• Electric vehicle battery component measurement
• Roll-to-roll and film thickness measurement (transparent and opaque films)
• Electronics and PCB inspection
• Semiconductor wafer metrology
• Consumer components and CCC industry
• Medical component inspection
• Micromechanics and watchmaking measurement
• Aerospace and aviation metrology
• Robotics integration for automated inspection

Product features

• Modular Lightslot architecture: four channels per module for scalable configurations
• High-speed acquisition: selectable frequency ranges by model for static and dynamic applications
• Synchronized multi-point measurement with encoder support for moving targets
• Standard GigE interface and available SDK for fast integration into PC/PLC systems
• Wide environmental operating range and industrial compliance for factory use
