Control measurement device XPLORELINE

diameterfor medical applicationscontinuous

Overview

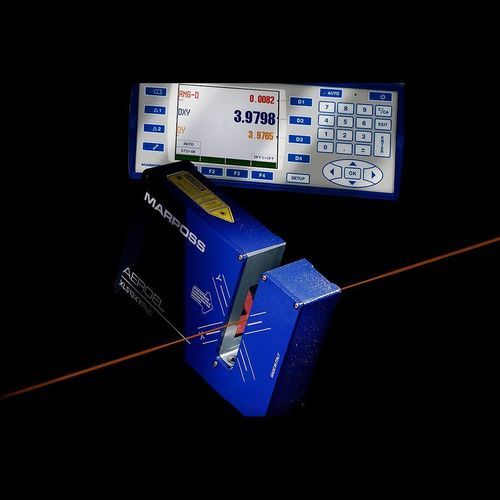

The XPLORELINE family provides inline laser micrometer systems for 100% diameter monitoring of continuous products. Each system includes a sensor/gauge programmed with dedicated software, a display unit and a remote control to measure fast-moving products with high precision and to support process control.

Exclusive features

• Scanning motor using Fluid Dynamic Bearing technology (no ball bearings) for wear‑minimised operation.
• NO-VAR option enables automatic thermal expansion compensation using a user-programmable coefficient of thermal expansion.
• Integrated Web Server (Ethernet) for remote access, setup, programming and live video (light pulse) display.

Benefits

• Measures diameter and position of the product across the measuring field for profile and concentricity control.
• Monitors average diameter and detects short diameter flaws in real time.
• Records max and min diameter over programmable lengths to verify shaped products (e.g. corrugated tube).
• Included Blistbuster software detects repetitive flaws/blisters and provides meter counting for length tracking.
• Out-of-tolerance alarm outputs and readiness for network integration.

Versions

• Single-axis: XPLORELINE.X40 — Measuring field 40.5 mm; measurable diameters 0.15–40 mm; repeatability up to ±0.6 µm.
• XPLORELINE.X80 — Measuring field 80 mm; measurable diameters 0.75–78 mm; repeatability up to ±1 µm.
• XPLORELINE.X150 — Measuring field 150 mm; measurable diameters 0.8–149 mm; repeatability up to ±1.5 µm.

• Dual-axis: XPLORELINE.XY13 — Measuring field 13x13 mm; measurable diameters 0.1–10 mm; repeatability up to ±0.3 µm.
• XPLORELINE.XY35 — Measuring field 35x35 mm; measurable diameters 0.2–32 mm; repeatability up to ±0.6 µm.

Video
Demonstration of in-line diameter control on a transparent glass tube using the XPLORELINE.X80 system, showing live measurement and light-pulse visualization.

Technical specifications

• Product family: XPLORELINE laser micrometer systems for on-line diameter measurement.
• System composition: sensor/gauge with dedicated software, display unit and remote control.
• Measurement capability: 100% on-line diameter monitoring of continuous products (electrical cables, plastic tubes, extruded profiles, glass tubes, etc.).
• Scanning motor: Fluid Dynamic Bearing technology for wear‑free operation.
• Thermal compensation: NO-VAR option with user-programmable coefficient of thermal expansion.
• Connectivity: Web Server via Ethernet for remote viewing, setup, programming and video display.
• Software: Blistbuster for detection of repetitive flaws/blisters and meter counting.
• Outputs: out-of-tolerance alarm outputs.
• Networking: ready for integration in industrial networks.
• Available configurations and typical repeatability: single-axis (X40, X80, X150) and dual-axis (XY13, XY35); repeatability range ±0.3 µm to ±1.5 µm depending on model.
