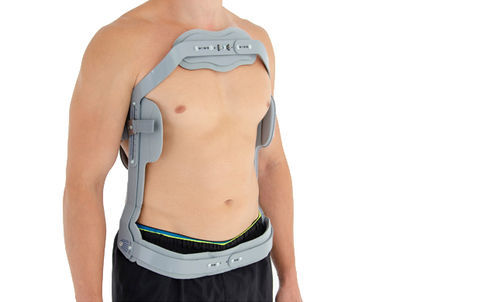

Thoraco-lumbar support corset HYPEREXTENSION BRACE AM-GJ-01

Description
Spinal hyperextension brace AM-GJ-01 is designed to stabilize the thoracolumbar spine using a 3-point pressure system (sternum, suprapubic area and dorsal). The design permits controlled extension while preventing flexion, aiding posture control, pain reduction and protection after compression fractures. Intended stabilization range: vertebrae from L-3 to Th-10.

Construction
The brace features an anterior metal (Jewett-type) frame covered with medical laminate to protect skin at pressure points. Internal padding consists of comfortable foam with cotton lining for skin contact.

Materials and main elements
AM-GJ-01 is manufactured from high-quality aluminum alloy with a sand-painted finish. The upper frame includes a mobile sternal plate, a mobile pelvic band and a mid-back plate to achieve controlled hyperextension.

Adjustment and fitting
Height, length, lateral and pelvic adjustments are performed via an alloy adjustment key. The pelvic mobile band has a full regulation system to lock the optimal angle or allow mobility for sitting comfort. Final fitting is secured by a back strap and lateral buckle closure for individualized tension control.

Back plate
The adjustable back plate is made of plastic and can be positioned in two different settings to adapt to anatomical requirements.

Indications

• Vertebral compression fractures (traumatic and pathological)
• Osteoporosis
• Vertebral pain due to secondary metastasis
• Immobilization after disc surgery (mid-term)
• Vertebral arthritis

Replacement items

• Soft corset element (padding)

Sizes
Size | Height from sternum to suprapubic | How to measure
S | 37–44 cm (14.6″–17.3″) | Measure vertical distance from sternum to suprapubic (illustration on product page)
M | 41–48 cm (16.1″–18.9″) | Measure vertical distance from sternum to suprapubic (illustration on product page)
L | 45–52 cm (17.7″–20.5″) | Measure vertical distance from sternum to suprapubic (illustration on product page)

Technology and components

• Frame stabilizer: anterior metal (Jewett-type) frame covered by medical laminate
• Paddings: 3D relief supports made of supporting foams or EVA foam with skin-friendly covers
• Mobile sternal plate, mobile pelvic band and mid-back plate for controlled hyperextension
• Alloy adjustment key for height, length, lateral and pelvic adjustments
• Back strap and lateral buckle closure for tension control
• Adjustable plastic back plate with two fitting positions

Technical specifications

• Brand: 4medic
• Trade name: SUPPORT, TORSO
• Model: HYPEREXTENSION BRACE AM-GJ-01
• Code: AM-GJ-01
• Intended stabilization range: vertebrae from L-3 to Th-10
• Design: 3-point pressure system (sternum, suprapubic, dorsal) — allows extension, prevents flexion
• Materials: aluminum alloy frame with sand-painted finish; medical laminate covering; foam padding lined with cotton; plastic adjustable back plate; alloy adjustment key
• Adjustability: height, length, lateral, pelvic adjustment via alloy key; pelvic band angle adjustable for sitting comfort; back plate position adjustable in two positions
• Purpose / indications: vertebral compression fractures, osteoporosis, vertebral pain from metastasis, post-disc surgery immobilization, vertebral arthritis
• Medical classification: Class I medical device
• Included features: mobile pelvic band with full regulation system, mobile sternal plate, mid-back plate, adjustable closures (back strap and lateral buckle)
