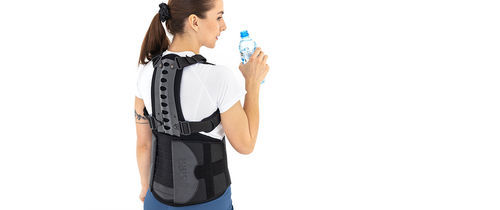

Cervico-thoraco-lumbo-sacral support corset SCORPION

Description
Dynamic back brace with CCA system SCORPION is a professional medical device offering stabilization and support of the spine. The brace features an anatomically shaped aluminum back panel, compression CCA System, shoulder straps and a waist belt. The aluminum back panel covers the entire spine from the lower back to the neck, is physiologically shaped to reflect natural spinal curves, provides professional stabilization and pressure relief, reduces intervertebral pressure and the risk of herniated discs, and improves disc hydration. The aluminium panel is covered with a soft, skin-friendly fabric MaxComfort™ that reduces pressure on bony prominences. The waist belt is assembled to the soft back panel element and is equipped with the dynamic compression CCA system; the waist belt is made of breathable, skin-friendly fabric ActiveSpace™.

Key product features

• Anatomical shaped aluminum spine panel covering lower back to neck
• Soft MaxComfort™ covering to reduce pressure on bony prominences
• Waist belt with ActiveSpace™ breathable spacer material
• Dynamic, non-elastic CCA compression system for precise circumferential adjustment and therapeutic compression
• Removable abdominal pad for additional anterior support
• Specialized shoulder straps adjustable in height and circumferentially, with foam parts to reduce armpit pressure and increase comfort
• Construction allows complete disassembly of the aluminum spine frame for hygiene and functionality maintenance

Technology and materials
ActiveSpace™
ActiveSpace™ is a spacer, polyamide 3D lamination with high skin ventilation, lightweight and consisting of two layers with polyamide braids between them. It is non-elastic to improve stabilization, allows free air flow between layers, maintains minimal water and moisture absorption and is waterproof.

MaxComfort™
MaxComfort™ is a multilayer material providing high comfort and stabilization: an outer soft knitted fabric (OekoTex Standard100), polyurethane foam for patient comfort and pressure distribution, technical polyethylene foam to relieve structural elements from the body, and a technical fabric layer with self-adhesive function to attach circumferential bands and details.

CCA Compression System
CCA is a dial/steel-wire-based compression system adapted from sport equipment. It provides firm, non-elastic, secure fastening adjustable without tools, enabling different levels of compression and precise circumferential fit. The system uses steel wires, differential polyamide grommets and knobs and is designed to avoid loosening under normal use.

Stiffening
The spine frame is made of a special aluminum alloy, anatomically shaped, powder coated for durability and sweat/water resistance, with holes and rotary buckles to fasten belts and allow fixation to the orthosis.

Purpose of use

• Spinal stenosis
• Sacroiliac pain
• Acute and chronic lower back pain
• Lower back sprains / strains
• Spinal disc displacement
• Osteoporosis
• Disc herniation and degeneration
• Post-operative immobilization
• Stable / non-displaced fractures

Sizes and dimensions (summary of tables)
Table 1 — Waist circumference
Size M: 75 – 85 cm
Size L: 85 – 97 cm
Size XL: 97 – 110 cm
Size 2XL: 110 – 125 cm
Size 3XL: 125 – 145 cm

Table 2 — Patient’s height
Size M: 150 – 170 cm
Size L: 170 – 190 cm

Total height of the product:
M: 56 cm
L: 62 cm

Gallery / images
Multiple product photos showing front, back, shoulder straps, CCA system, abdominal pad and aluminum spine frame (gallery images available on product page).

Note
Product presented as a Class I medical device. Use according to instructions for use or label.

Caractéristiques / spécifications techniques

• Brand: 4medic
• Code UMDNS: 18030
• Trade name: TORSO SUPPORT
• Model / Code: SCORPION
• Device class: Class I medical device (Regulation (EU) 2017/745)
• Main materials: Aluminum spine frame (special alloy), MaxComfort™ multilayer padding, ActiveSpace™ spacer fabric, steel wire and polyamide grommets for CCA system
• Compression system: CCA (dial + steel wire) — non-elastic, firm fastening, adjustable without tools
• Waist circumference ranges: M 75–85 cm; L 85–97 cm; XL 97–110 cm; 2XL 110–125 cm; 3XL 125–145 cm
• Patient height recommendation: M 150–170 cm; L 170–190 cm
• Total product height: M 56 cm; L 62 cm
• Features: removable abdominal pad; height-adjustable shoulder straps with foam pads; full circumferential adjustment; aluminium frame removable for hygiene
