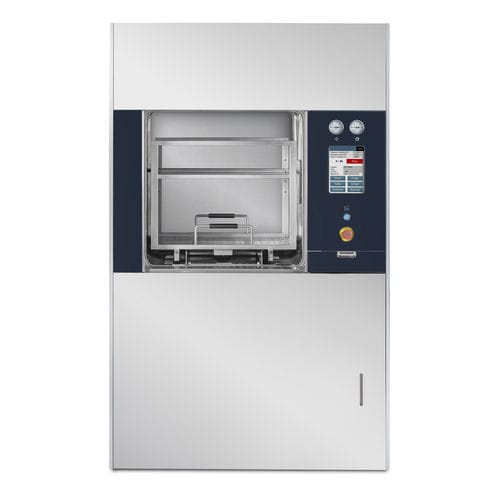

Medical sterilizer HMS04 series

steamfloor-standingautomatic

The autoclave is still undergoing MDR certification Technical Features Technical Features Chamber capacity: 334 l STU loading capacity: 4 Temperature range: 110 - 136 °C Door: 2, sliding doors in AISI 316L stainless steel Safety Door Lock: Yes Emergency opening system: Yes Temperature sensors in Tank: 2 × PT100 Programs Standard programs: 19 Modifiable programs: 10 Program editing: Yes Test programs: 2 Interface Electronic control: Yes Display: 9.7" LCD Touch Screen on loading side, Optional 7" LCD Touch Screen on unloading side Set of display languages: IT (Italiano), EN, DE, ES, PL Programme progress indicator: Yes End of cycle indicator: Yes Alarm display: Yes, on the display Remaining duration display: Yes Traceability: - Cycle Archive: Yes - Download cycle: Optional, through printer or dedicated software - USB port: Yes - Ethernet port: Optional Construction: - Chamber material: Stainless steel AISI 316L; AISI 316 Ti optional - External material of the machine: Stainless Steel AISI 304 - Heating jacket material: AISI 316L stainless steel; AISI 316 Ti optional - Chamber and jacket stainless steel piping with Tri-Clamp fittings: Optional - Jacket system for efficient heat distribution: Yes - Steam generator: Standard - HEPA air intake filter: Yes, for particles up to 0.2 µm in size - Vacuum pump: Yes - Probe passage for validation: Yes - Integrated panel printer: Yes Electrical connection: 200-230V 3N~/ 50Hz; 380-400V 3N~/ 50Hz Voltage (V): 380-400; 220-230 V Frequency (Hz): 50/60 Hz Monophase conversion: Not applicable 60 Hz Possibility: Yes, on demand
