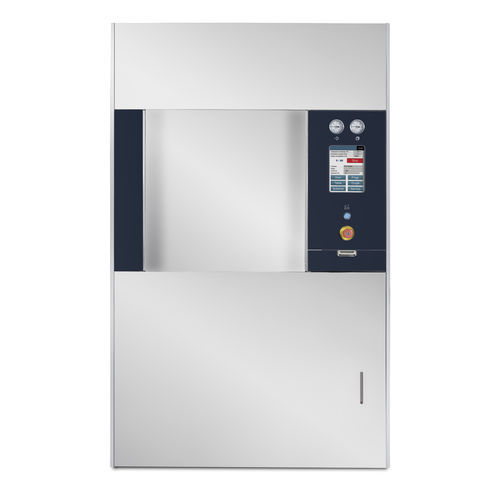

Medical sterilizer HMS08-GP

for sterilization servicesCSSDfor central sterilization supply units

Overview
The HMS series autoclaves are engineered for Health Care and Life Science applications, delivering high-performance steam sterilization for medium and large volumes with a design focused on reliability, hygiene and ease of use.

Highlights

• Intuitive display: large 10" color touch display (clear cycle parameters, real-time graphs and alarm management).
• Full traceability: integrated printer, LAN/Ethernet connection and optional Smeg Track Cycle Reports software for cycle recording, consultation and sharing.
• High-grade materials: chamber and jacket in AISI 316L stainless steel (AISI 316 Ti optional); optional tri-clamp piping and fittings.
• NCG sensor: automatic continuous monitoring of non-condensable gases to ensure steam quality and regulatory compliance.
• Loading solutions: integration with dedicated carts, automation systems and adjustable-height solutions to improve ergonomics and productivity.

Main features

• Type: Medical steam sterilizer — medium and large volumes
• Internal capacity: 605 L
• Load capacity (STU): 8
• Temperature range: 110 - 136 °C
• Doors: 2 sliding doors in AISI 316L stainless steel
• Chamber material: AISI 316L stainless steel (AISI 316 Ti optional)
• Jacket material: AISI 316L stainless steel (AISI 316 Ti optional)
• External cladding: AISI 304 stainless steel
• Steam generator: integrated, standard
• Vacuum pump: yes

Programs

• Stored standard programs: 19
• Modifiable programs: 10
• Test programs: 2

Options and equipment

• NCG sensor for automatic monitoring of non-condensable gases: optional
• Unloading/loading cart for easy handling: yes
• Automatic loading/unloading system: yes
• Intake HEPA filter: yes, for particulates down to 0.2 µm
• Probe ports for validation: yes
• Integrated panel printer: yes

Interface and connectivity

• Display: 9.7" touch screen on loading side; optional 7" touch screen on unloading side
• USB port: yes
• Alarm signaling: yes, on display
• Program progress and end-of-cycle indicator: yes
• Cycle archiving: yes
• Cycle archive download: optional via printer or dedicated software
• LAN port for network connection: yes

Electrical connection

• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz
• 60 Hz option: available on request

Documentation and certifications

• Medical devices declaration: yes

Available versions

• HMS08-0P — version with external steam source
• HMS08-GM — single-door version
• HMS08-0M — single-door version with external steam source

Logistics

• Dimensions (W x D x H mm): 1170 x 1525 x 1900

Technical specifications

• Internal capacity: 605 L
• Temperature range: 110 - 136 °C
• Load capacity (STU): 8
• Doors: 2 sliding doors in AISI 316L
• Chamber/jacket material: AISI 316L (AISI 316 Ti optional)
• Steam generator: integrated, standard
• Vacuum pump: yes
• Chamber temperature sensors: 2 x PT100
• Safety door lock and emergency opening: yes
• Programs: 19 standard, 10 modifiable, 2 test
• Intake HEPA filter: up to 0.2 µm
• Interfaces: 9.7" touch screen (load), USB, LAN (cycle download optional)
• Dimensions: 1170 x 1525 x 1900 mm
