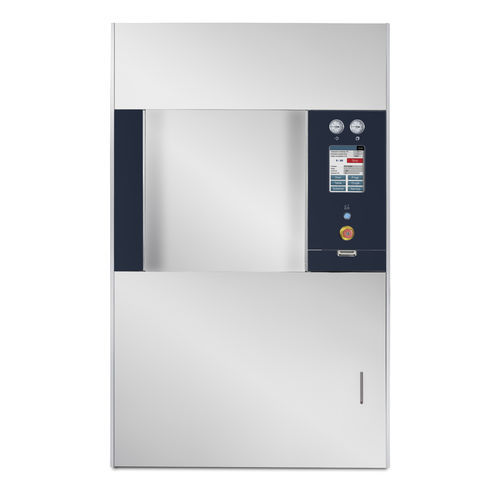

Medical sterilizer HMS06-GP

for sterilization servicesCSSDsteam

Main information
Type: Medical steam sterilizer - medium and large volumes
Load capacity STU: 6
Door: 2, stainless steel sliding doors AISI 316L
Chamber material: Stainless steel AISI 316L; AISI 316 Ti optional
Steam generator: Standard
Vacuum pump: Yes

Highlights

• Intuitive display: Large 10" colour touch display designed for immediate and easy operation; clear visualization of cycle parameters, real-time graphs and alarms for complete and safe control.
• Complete traceability: Advanced traceability systems with integrated printer, LAN/Ethernet connection and optional Smeg Track Cycle Reports software for centralised cycle data consultation and management.
• High-quality materials: Chamber and jacket in AISI 316L stainless steel (AISI 316 Ti optional); piping and tri-clamp fittings available as options for high-hygiene applications and easier maintenance.
• NCG sensor: Continuous monitoring of steam quality by measuring non-condensable gases in real time, automatic verification of each cycle without manual tests for reliable performance and regulatory compliance.
• Loading solutions: Designed to integrate with dedicated trolleys, automated loading systems and height-adjustable equipment to improve ergonomics, productivity and safety in CSSD configurations.

Application and sectors
Health care sector: Central sterilization departments (CSSD)
Solution area: Health Science

Programs
Stored standard programs: 19; Modifiable programs: 10; Test programs: 2

Options

• NCG sensor for automatic monitoring of non-condensable gases: Yes
• Unloading trolley for easy loading/unloading: Yes
• Automatic loading/unloading system: Yes

Interface
Display: 9.7" touch screen LCD on loading side; 7" touch screen LCD on unloading side optional
USB port: Yes
Alarm signalling: Yes, on display
Program progress indicator: Yes
End-of-cycle indicator: Yes
Cycle storage: Yes (download archive optional via printer or dedicated software)
LAN port for network connection: Yes

Construction and materials
Jacket material: AISI 316L stainless steel (AISI 316 Ti optional)
Chamber material: AISI 316L stainless steel (AISI 316 Ti optional)
External casing material: AISI 304 stainless steel
Stainless steel piping for chamber and jacket with Tri-Clamp fittings: Optional

Equipment
Jacket for efficient heat distribution: Yes
Steam generator: Standard
HEPA intake filter: Yes, for particles down to 0.2 µm
Vacuum pump: Yes
Probe ports for validation: Yes
Integrated panel printer: Yes

Manuals and certifications
Medical device declaration: Yes

Available versions
HMS06-GM - single-door version; HMS06-0P - version with external steam source; HMS06-0M - single-door version with external steam source

Logistic information
Product dimensions LxDxH (mm): 1170x1225x1900
