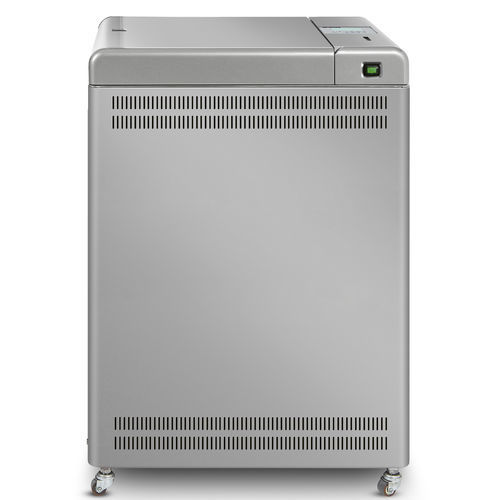

Laboratory sterilizer VLS100GCSVF

steamverticaltop-loading

Versatile use
The autoclave is designed for sterilization across a wide range of laboratory applications, including sterilization of instruments (packaged and unpackaged), glassware, hollow loads such as pipettes, porous materials, sterilization of liquids in open or sealed containers, agar preparation and decontamination of biological waste.

Safe and effective sterilization
With an integrated steam generator, wide managed temperature range and an internal chamber in AISI 316L stainless steel, the unit provides reliable sterilization cycles suitable for scientific and laboratory environments.

Rapid cooling system
The rapid cooling system reduces liquid cooling times by approximately 40% versus the base version. Specific configurations include an optional integrated cooling fan for ultra-fast cooling and increased process speed.

Traceability
Optional dot-matrix printer records current cycle data or data from up to the last 40 cycles. The autoclave can be connected to a PC using the dedicated Smeg Track software to monitor cycles and archive data, ensuring full traceability.

Optional accessories
Available optional accessories include an electric crane for loading/unloading and a full set of baskets for sterilizing different load types.

Technical specifications

• Model: VLS100GCSVF
• Type: Vertical steam sterilizer for laboratory
• Internal capacity: 100 L
• Temperature range: 60 - 136 °C
• Door: 1, top-hinged stainless steel
• Chamber material: AISI 316L stainless steel
• Interspace material: AISI 316L stainless steel
• External casing material: AISI 304 stainless steel
• Steam generator: Standard
• Vacuum pump: Yes
• Intake/air HEPA filter: Yes, for particulates down to 0.3 µm
• Door safety lock: Yes
• Emergency opening system: Yes
• Temperature sensors in chamber: 2 x PT100
• Stored standard programs: 20
• Modifiable programs: 20
• Test programs: 2
• Options: Bio-Hazard exhaust HEPA filter (code VLS-BHS); electric crane for loading/unloading (code VLS-CRANE)
• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz; 60 Hz available on request
• Interface: LCD display; alarm messages on display; program progress indicator; end-of-cycle indicator; cycle archive; optional cycle download via printer or dedicated software; optional LAN port
• Equipment: Counter-pressure system; ultra-rapid cooling system with additional fan; probe ports for validation
• Dimensions (W x D x H mm): 735 x 600 x 1100
