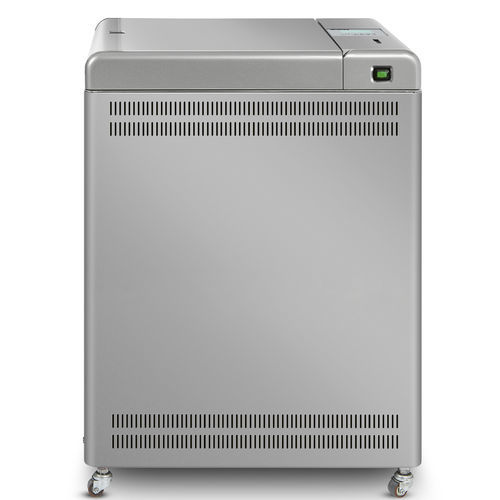

Laboratory medical sterilizer VLS80GCSVF

for the pharmaceutical industryfor researchfor the food industry

Overview
The VLS80GCSVF is a vertical laboratory steam sterilizer designed for a wide range of sterilization tasks: packaged and unpackaged instruments, glassware, hollow loads (pipettes, porous materials), liquids in open or sealed containers, agar preparation and biological waste decontamination.

Performance and reliability
Equipped with an integrated steam generator, an operating range of 60–136 °C and an AISI 316L stainless steel chamber, the unit delivers reproducible sterilization cycles. A rapid cooling system reduces cooling time by ≈40%; select configurations include an additional cooling fan for ultra-fast cooling.

Traceability and control
Optional dot-matrix printer records current and up to the last 40 cycles. Network connection via Smeg Track software enables cycle monitoring and data archiving on a PC to ensure full traceability.

Accessories and options

• Bio-Hazard HEPA exhaust air filter (code VLS-BHS) optional
• Electric hoist for loading/unloading (code VLS-CRANE) optional
• Complete set of baskets and additional accessories for different load types

Additional details
Standard equipment includes steam generator and vacuum pump. Features: 2 × PT100 chamber temperature sensors, safety door lock, emergency door release and probe ports for validation activities.

Technical specifications

• Type: Vertical laboratory steam sterilizer
• Model: VLS80GCSVF
• Chamber capacity: 80 L
• Temperature range: 60–136 °C
• Door: 1 top-hinged stainless steel door
• Chamber material: AISI 316L stainless steel
• Jacket material: AISI 316L stainless steel
• External casing: AISI 304 stainless steel
• Steam generator: Integrated (standard)
• Vacuum pump: Yes
• HEPA intake filter: Yes (particles ≥ 0.2 µm)
• Counter-pressure system: Yes
• Ultra-rapid cooling system (additional fan): Yes (specific versions)
• Safety door lock: Yes
• Emergency opening: Yes
• Chamber temperature sensors: 2 × PT100
• Stored standard programs: 20
• Modifiable programs: 20
• Test programs: 2
• Options: Exhaust Bio-Hazard HEPA filter (VLS-BHS); Electric hoist (VLS-CRANE)
• Electrical connection: 200–230V 3N~ / 50Hz; 380–400V 3N~ / 50Hz
• 60 Hz available on request
• Interface: LCD display; alarm messages on display; program progress and end indicators
• Cycle archiving: Yes; optional download via printer or dedicated software
• LAN port: Optional
• Standard supply: Integrated steam generator, vacuum pump, probe ports for validation
• Dimensions (W × D × H): 735 × 600 × 950 mm
• Typical applications: Laboratories, Pharmaceuticals, Petrochemical industry, Food industry, Small R&D facilities
