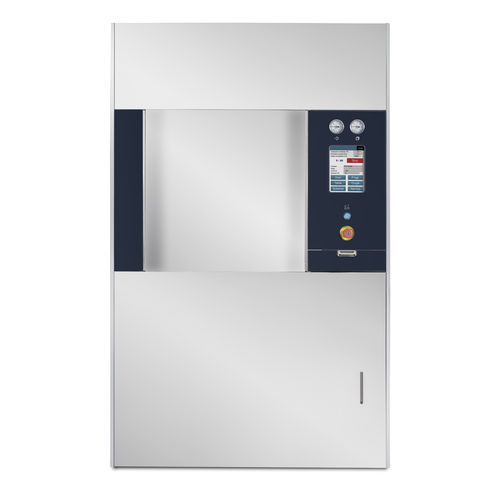

Healthcare facility sterilizer HMS10-GP

clinicalCSSDsteam

Overview
The HMS autoclaves are medical steam sterilization systems engineered for medium to large volume workloads. They prioritize reliable performance, user-friendly operation and regulatory compliance for central sterilization departments and healthcare facilities.

Highlights

• Intuitive display: 10" color touch display for clear cycle parameter visualization, real-time graphs and alarm notifications.
• Complete traceability: integrated panel printer, LAN/Ethernet connectivity and optional integration with Smeg Track Cycle Reports software for cycle review, archiving and data sharing.
• High-grade materials: chamber and jacket in AISI 316L stainless steel (AISI 316 Ti optional); optional tri-clamp piping and fittings for high-hygiene applications.
• NCG sensor: continuous automatic monitoring of non-condensable gases (NCG) to verify steam quality in real time without manual tests.
• Load handling solutions: designed to integrate with dedicated trolleys, automated loading systems and adjustable-height solutions to improve ergonomics, productivity and safety.

Features and functions

• Built-in steam generator.
• Integrated vacuum pump.
• HEPA intake filter (captures particles down to 0.2 µm).
• Probe ports for validation.
• Integrated panel printer; cycle archiving available and cycle archive download optional via printer or dedicated software.
• USB and LAN ports for network connection; alarm indicators and program progress display.

Applications
Intended for central sterilization units and clinical departments requiring steam sterilization of instruments and medium to large loads. Also available in version HMS10-0P with external steam source.

Technical characteristics / specifications

• Model: HMS10-GP
• Internal capacity: 756 L
• Load capacity (STU): 10
• Temperature range: 110 - 136 °C
• Door: 2 sliding doors in AISI 316L stainless steel
• Chamber material: AISI 316L stainless steel (AISI 316 Ti optional)
• Jacket material: AISI 316L stainless steel (AISI 316 Ti optional)
• External casing material: AISI 304 stainless steel
• Steam generator: Standard
• Vacuum pump: Yes
• Chamber temperature sensors: 2 x PT100
• Standard stored programs: 19
• Modifiable programs: 10
• Test programs: 2
• NCG sensor (non-condensable gas monitoring): Optional / yes
• Unloading trolley for easy loading/unloading: Yes
• Automatic loading/unloading system: Yes
• Safety door lock: Yes
• Emergency opening system: Yes
• HEPA intake filter: Yes (for particles down to 0.2 µm)
• Integrated panel printer: Yes
• USB port: Yes
• LAN port for network connection: Yes
• Program progress indicator and end-of-cycle indicator: Yes
• Cycle archiving: Yes (cycle archive download optional via printer or dedicated software)
• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz; 60 Hz available on request
• Medical device declaration: Yes
• Product dimensions (WxDxH mm): 1170 x 1835 x 1900
• Available versions: HMS10-0P (version with external steam source)
