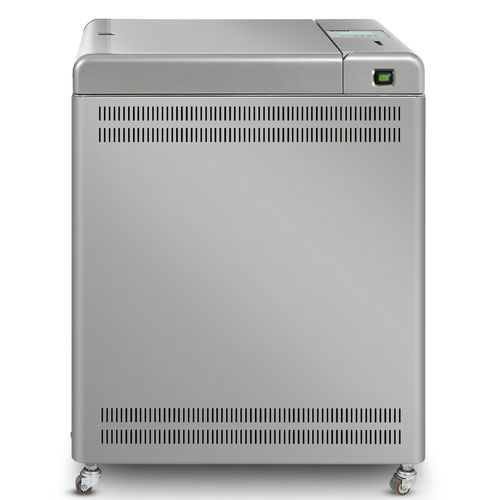

Laboratory medical sterilizer VLS60GCSVF

for the pharmaceutical industryfor the food industrysteam

Overview
The VLS60GCSVF autoclave is a vertical laboratory steam sterilizer designed for reliable performance across multiple applications: sterilization of packaged and unpackaged instruments, glassware, hollow loads (pipettes, porous materials), sterilization of liquids in open or sealed containers, agar preparation, and disposal of biologically hazardous waste.

Key features

• Type: Vertical laboratory steam sterilizer
• Door: 1, top-hinged stainless steel
• Chamber material: AISI 316L stainless steel
• Steam generator: Integral (standard)
• Vacuum pump: Yes

Use and benefits
The autoclave is engineered for versatile use and ensures effective sterilization thanks to the integrated steam generator, wide controllable temperature range and corrosion-resistant materials. The rapid-cooling system reduces cooling time by approximately 40% compared with the basic version; certain models offer an integrated cooling fan for ultra-fast cooling.

Traceability and recording
Optional dot matrix printer can record data for the current cycle or any of the last 40 cycles. PC connection with dedicated Smeg Track software is available to monitor cycles and archive data for full traceability.

Optional accessories
The unit can be fitted with accessories such as an electric hoist for loading/unloading and a complete set of baskets for different load types.

Intended use

• Solution Instruments: Life science
• Life Science sectors: Laboratory; Pharmaceutical; Petrochemical; Food; Small laboratories

Programs

• Stored standard programs: 20
• Modifiable programs: 20
• Test programs: 2

Options

• Bio-hazard exhaust air HEPA filter: Yes (code VLS-BHS)
• Electric hoist for easy loading/unloading: Yes (code VLS-CRANE)

Electrical connection

• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz
• 60 Hz option: Yes, on request

Interface and control

• Display: LCD
• Alarm indication: Yes, on display
• Program progress indicator: Yes
• End-of-cycle indicator: Yes
• Cycle archiving: Yes
• Cycle archive download: Optional, via printer or dedicated software
• LAN port for network connection: Optional

Construction and equipment

• Interspace material: AISI 316L stainless steel
• External casing material: AISI 304 stainless steel
• Safety door lock: Yes
• Emergency opening system: Yes
• Temperature sensors in chamber: 2 x PT100
• HEPA intake filter for particulates down to 0.2 µm: Yes
• Counterpressure system: Yes
• Ultra-fast cooling system with additional fan: Yes
• Probe ports for validation: Yes

Logistical information
Product dimensions LxWxH (mm): 735x600x800

Characteristics / technical specifications

• Model: VLS60GCSVF
• Internal capacity: 60 L
• Temperature range: 60 - 136 °C
• Door: 1, top-hinged stainless steel
• Steam generator: Standard
• Vacuum pump: Yes
• Temperature sensors: 2 x PT100
• Programs: 20 standard, 20 modifiable, 2 test
• Bio-hazard exhaust HEPA filter (optional): code VLS-BHS
• Electric hoist (optional): code VLS-CRANE
• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz (60 Hz on request)
• Dimensions: 735 x 600 x 800 mm
