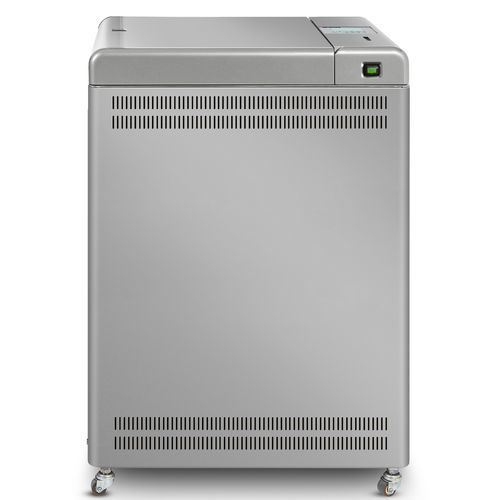

Laboratory sterilizer VLS100G

steamverticaltop-loading

Overview The autoclave is engineered to deliver consistent sterilization performance across a wide range of laboratory applications, ensuring reliable and traceable results.

• Sterilization of instruments, both packaged and unpackaged
• Sterilization of glassware and hollow loads (e.g. pipettes, porous materials)
• Sterilization of liquids in open or sealed containers
• Preparation of agar media
• Sterilization of biological waste

Main features Equipped with an integrated steam generator, wide temperature range and high-grade materials such as AISI 316L stainless steel, the autoclave provides safe and efficient sterilization cycles.

• Steam generator: standard
• Chamber material: AISI 316L stainless steel
• Rapid cooling system: reduces cooling time by approximately 40% compared with the base version; some variants include an integrated cooling fan for ultra-fast cooling
• Safety door lock and emergency release system
• Chamber temperature sensors: 2 x PT100

Traceability The autoclave can optionally be fitted with a dot-matrix printer to record current cycle data or the last 40 cycles. Connection to a PC is possible via the dedicated Smeg Track software to monitor cycles and store data, ensuring full traceability.

Optional accessories Available accessories include an electric crane for loading/unloading and complete sets of baskets for different load types.

Available versions

• VLS100GC - version with rapid cooling
• VLS100GV - version with vacuum pump
• VLS100GCV - rapid cooling and vacuum pump
• VLS100GCS - rapid cooling and counter-pressure system
• VLS100GCSV - rapid cooling, vacuum pump and counter-pressure system
• VLS100GCSF - ultra-rapid cooling and counter-pressure system
• VLS100GCSVF - ultra-rapid cooling, vacuum pump and counter-pressure system

Technical features / specifications

• Model designation: VLS100G
• Type: Vertical steam sterilizer for laboratory use
• Internal capacity: 100 L
• Temperature range: 60 - 136 °C
• Door: 1 top-hinged stainless steel door
• Safety door lock: Yes
• Emergency opening system: Yes
• Chamber temperature sensors: 2 x PT100
• Standard stored programs: 20
• Customizable programs: 20
• Bio-Hazard exhaust air HEPA filter: Optional (code VLS-BH)
• Electric crane for loading/unloading: Optional (code VLS-CRANE)
• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz
• 60 Hz option: Yes, on request
• Display: LCD
• Alarm indication: Yes, on display
• Program progress indicator: Yes
• End-of-cycle indicator: Yes
• Cycle archiving: Yes
• Cycle archive download: Optional, via printer or dedicated software
• LAN port for network connection: Optional
• Cavity material: AISI 316L stainless steel
• External casing material: AISI 304 stainless steel
• Intake HEPA filter: Yes, for particulates down to 0.3 µm
• Probe ports for validation: Yes
• Steam generator: Standard
• Dimensions LxWxH (mm): 735 x 600 x 1100
