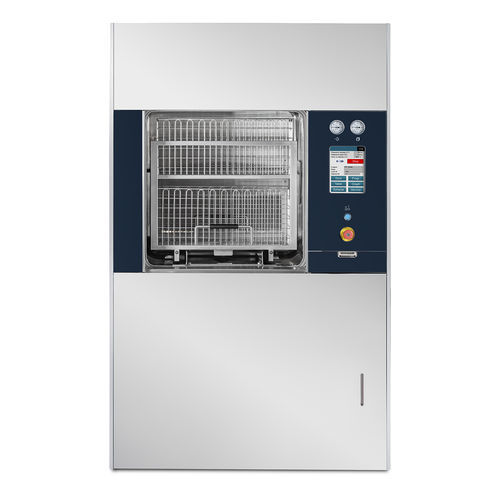

Medical sterilizer HMS04-GP

for central sterilization supply unitssteamsaturated steam

Overview

• Medical steam autoclave for medium and large volumes, model HMS04-GP, designed for central sterilization departments and Health Science applications.

Intended use

• Health Care sector: Central sterilization departments
• Instrument solutions: Health Science

Type

• Medical steam sterilizer - medium and large volumes
• Load capacity (STU): 4
• Door: 2, sliding AISI 316L stainless steel
• Steam generator: integrated
• Vacuum pump: Yes

Technical specifications (table)
Internal capacity: 334 L
Temperature range: 110 - 136 °C
Load capacity (STU): 4
Door: 2, sliding AISI 316L stainless steel
Safety door lock: Yes
Emergency opening system: Yes
Chamber temperature sensors: 2 x PT100

Programs

• Stored standard programs: 19
• Modifiable programs: 10
• Test programs: 2

Options

• NCG sensor for continuous monitoring of non-condensable gases: Yes
• Unloading trolley for easy loading/unloading: Yes
• Automatic loading/unloading system: Yes

Electrical connection

• Electrical connection: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz
• 60 Hz option: Yes, on request

Manuals and certifications

• Medical device declaration: Yes

Available versions

• HMS04-GM - single-door version
• HMS04-0P - version without integrated steam generator
• HMS04-0M - single-door version without integrated steam generator

Interface

• Display: 9.7" LCD touch screen on loading side; optional 7" LCD touch screen on unloading side
• USB port: Yes
• Alarm indications: Yes, on display
• Program progress indicator: Yes
• End-of-cycle indicator: Yes
• Cycle archiving: Yes
• Ethernet port: Optional
• Cycle archive download: Optional, via printer or dedicated software

Construction

• Interspace material: AISI 316L stainless steel; AISI 316 Ti optional
• Chamber material: AISI 316L stainless steel; AISI 316 Ti optional
• External casing material: AISI 304 stainless steel
• Stainless steel piping for chamber and interspace with Tri-Clamp fittings: Optional

Equipment

• Interspace for efficient heat distribution: Yes
• Steam generator: Integrated
• HEPA intake filter: Yes, for particles down to 0.2 µm
• Vacuum pump: Yes
• Probe ports for validation: Yes
• Integrated panel printer: Yes

Logistics information

• Product dimensions LxDxH (mm): 1170 x 970 x 1900

Availability notes and status

• Product tag on page: "Coming soon"
• Current availability on page: OutOfStock

Features / technical specifications

• Model: HMS04-GP
• Internal capacity: 334 L
• Temperature range: 110 - 136 °C
• Load capacity (STU): 4
• Doors: 2 sliding AISI 316L
• Steam generator: integrated (versions without generator available)
• Vacuum pump: Yes
• Temperature sensors: 2 x PT100
• Standard programs: 19; modifiable: 10; test: 2
• NCG sensor: optional/available
• Display: 9.7" LCD touch screen (loading side); optional 7" unloading side
• USB port: Yes; Ethernet: optional
• HEPA intake filter: down to 0.2 µm
• Dimensions: 1170x970x1900 mm
• Materials: chamber and interspace AISI 316L (AISI 316 Ti optional); external AISI 304
