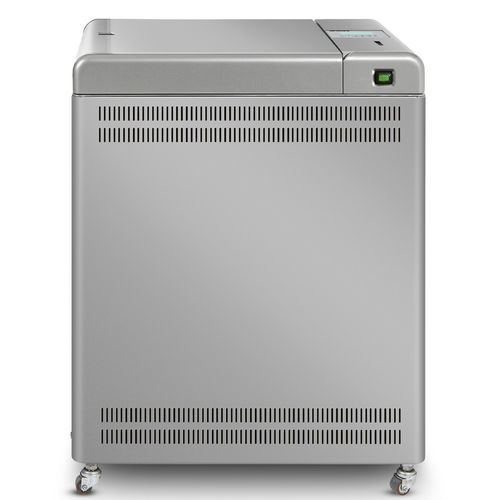

Laboratory sterilizer VLS60G

for life sciences applicationssteamvertical

Overview
The VLS60G is a vertical steam autoclave designed for laboratory and life science applications. It is suitable for sterilizing packaged and unpackaged instruments, glassware, hollow loads (e.g., pipettes), liquids in open or sealed containers, agar preparation and treatment of biohazardous materials.

Sterilization and performance
Equipped with an integrated steam generator and a wide controllable temperature range, the VLS60G delivers efficient and reliable sterilization cycles adapted to a variety of scientific and laboratory needs.

Cooling system
The model is available with a rapid cooling system that reduces cooling times by approximately 40% compared to the standard version. Some variants include an integrated cooling fan for ultra-fast cooling and increased process throughput.

Traceability
The autoclave can be fitted with a printer to record cycle data (current or last 40 cycles) and connected to a PC via dedicated software for monitoring and archiving sterilization cycles, ensuring full traceability.

Optional accessories

• Electric hoist to facilitate loading/unloading
• Set of baskets for different load types
• Bio-Hazard HEPA exhaust air filter (code VLS-BH)

Available versions

• VLS60GC - version with rapid cooling
• VLS60GV - version with vacuum pump
• VLS60GCV - rapid cooling and vacuum pump
• VLS60GCS - rapid cooling and backpressure system
• VLS60GCSV - rapid cooling, vacuum pump and backpressure system
• VLS60GCSF - ultra-rapid cooling and backpressure system
• VLS60GCSVF - ultra-rapid cooling, vacuum pump and backpressure system

Features / technical specifications

• Internal capacity: 60 L
• Temperature range: 60 - 136 °C
• Type: Vertical steam sterilizer for laboratory
• Door: 1, top-hinged stainless steel
• Chamber material: Stainless steel AISI 316L
• Jacket material: Stainless steel AISI 316L
• External casing: Stainless steel AISI 304
• Steam generator: Standard
• Door safety lock: Yes
• Emergency opening system: Yes
• Chamber temperature sensors: 2 x PT100
• Stored standard programs: 20
• Editable programs: 20
• Bio-Hazard HEPA exhaust filter (option): Yes (code VLS-BH)
• Electric hoist for easy loading/unloading (option): Yes (code VLS-CRANE)
• Display: LCD
• Alarm indicators: Yes, on display
• Program progress indicator: Yes
• End-of-cycle indicator: Yes
• Cycle archiving: Yes
• Archive download: Optional via printer or dedicated software
• LAN port for network connection: Optional
• Intake HEPA filter: Yes, for particles down to 0.3 µm
• Probe ports for validation: Yes
• Power supply: 200-230V 3N~/50Hz; 380-400V 3N~/50Hz
• 60 Hz option: Yes, on request
• Dimensions W×D×H (mm): 735×600×800
